This feature is in early access and behind a feature flag. Contact your Augment Solutions Architect to enable it for your tenant

Introduction

This guide walks through connecting a self-hosted Kubernetes cluster to Cosmos. It uses an AWS EC2 instance running Ubuntu and Minikube as a reference environment, then covers deployment with either generated k8s manifests or Helm.

Prerequisites

Cosmos

Must have access to cosmos.augmentcode.com

AWS

Must have permission to deploy and manage a AWS EC2 instance
Outbound access to gw.cosmos.augmentcode.com:443
An x86_64/amd64 Ubuntu host with KVM and nested virtualization enabled
At least 100 GB of storage
Permission to install Docker, Minikube, kubectl, and Helm

Configure AWS EC2 Ubuntu + Minikube

Create a Cosmos service account

Go to cosmos.augmentcode.com, go to Settings > Service Accounts > + Create service account:

Account name: k8s-self-hosted
Description: To connect our hosted k8s cluster to Cosmos

You’ll get “You service account is ready”. Then click on Create API token > New token name: token01 > click on Create token Then click on “Copy token” and store it securely. You will use it later to create a k8s secret.

Create a Cosmos sandbox provider

Go to cosmos.augmentcode.com > Settings > Sandbox Providers > + Create provider:

Display name: my-k8s-0
Slug: my-k8s-0
Enabled: keep toggled on
Click on Create provider

You should see my-k8s-0 in the list with an Enabled status.:

Create an AWS EC2 instance + Minikube

Deploy the EC2 instance

Go to your AWS Console > deploy a new EC2 instance:

OS: Ubuntu 26.04 LTS HVM
Architecture: 64-bit (x86)
Instance type: m7i.2xlarge
Configure storage: 100 GB gp3
Advanced details > Nested virtualization > Enabled

After launching the EC2 instance, verify the architecture, virtualization support, and KVM device:

uname -m                         # expected: x86_64
lscpu | grep -i virtualization  # expected: VT-x
sudo modprobe kvm_intel
ls -l /dev/kvm

Expected result:

crw-rw---- 1 root kvm 10, 232 /dev/kvm

Install Minikube

curl -LO https://github.com/kubernetes/minikube/releases/latest/download/minikube-linux-amd64
sudo install minikube-linux-amd64 /usr/local/bin/minikube
rm minikube-linux-amd64

Install Docker Engine

Follow the Docker Engine installation guide for Ubuntu, or configure the official apt repository directly:

sudo apt update
sudo apt install -y ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg \
  -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

sudo tee /etc/apt/sources.list.d/docker.sources <<EOF
Types: deb
URIs: https://download.docker.com/linux/ubuntu
Suites: $(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}")
Components: stable
Architectures: $(dpkg --print-architecture)
Signed-By: /etc/apt/keyrings/docker.asc
EOF

sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io \
  docker-buildx-plugin docker-compose-plugin

Verify that Docker is running:

sudo systemctl status docker

Expected result:

● docker.service - Docker Application Container Engine
     Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; preset: enabled)
     Active: active (running) since Wed 2026-09-16 02:13:26 UTC; 18s ago
 Invocation: 8dc1edea5fde412dbd54528777057852
TriggeredBy: ● docker.socket
       Docs: https://docs.docker.com
   Main PID: 8281 (dockerd)
      Tasks: 14
     Memory: 30.1M (peak: 30.3M)
        CPU: 459ms
     CGroup: /system.slice/docker.service
             └─8281 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock

If it is not running, start it:

sudo systemctl start docker

Install kubectl

KUBECTL_VERSION=$(curl -Ls https://dl.k8s.io/release/stable.txt)
curl -LO "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/amd64/kubectl"
curl -LO "https://dl.k8s.io/release/$KUBECTL_VERSION/bin/linux/amd64/kubectl.sha256"
echo "$(cat kubectl.sha256) kubectl" | sha256sum --check
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

The checksum command should return kubectl: OK.

Grant Docker access and start Minikube

The reference EC2 image uses the ubuntu user:

whoami # should print ubuntu
sudo usermod -aG docker ubuntu # adds ubuntu to the docker group without removing existing group memberships.
newgrp docker # starts a new shell where that membership is immediately active.

Run a Docker Hello World

id -nG                     # This command checks which user groups your current account belongs to. Should include docker
docker run --rm hello-world # Run a hello world test

Start Minikube with the Docker driver:

minikube start --driver=docker --container-runtime=containerd

All core pods in the kube-system namespace should reach Running status.

Minikube uses a container-in-container architecture, so Docker shows one Minikube container rather than each Kubernetes workload. Run minikube stop when you need to stop the cluster.

Verify the cluster:

kubectl get pods -A

Expected result:

NAMESPACE     NAME                               READY   STATUS    RESTARTS   AGE
kube-system   coredns-559f6c778d-fmf9b           1/1     Running   0          24s
kube-system   etcd-minikube                      1/1     Running   0          30s
kube-system   kindnet-49t8x                      1/1     Running   0          24s
kube-system   kube-apiserver-minikube            1/1     Running   0          30s
kube-system   kube-controller-manager-minikube   1/1     Running   0          30s
kube-system   kube-proxy-24l6k                   1/1     Running   0          24s
kube-system   kube-scheduler-minikube            1/1     Running   0          30s
kube-system   storage-provisioner                1/1     Running   0          29s

Label the KVM-capable node

minikube kubectl -- label node minikube \
  cosmos.augmentcode.com/pool-type=kvm --overwrite

Expected result:

node/minikube labeled

Enable the Minikube registry via the built-in add-on and capture its cluster IP

minikube addons enable registry
kubectl -n kube-system wait \
  --for=condition=Available deployment/registry --timeout=180s
export REGISTRY_IP=$(kubectl -n kube-system get service registry \
  -o jsonpath='{.spec.clusterIP}')
echo "Registry inside Kubernetes: ${REGISTRY_IP}:80"

Expected result:

* registry is an addon maintained by minikube. For any concerns contact minikube on GitHub.
You can view the list of minikube maintainers at: https://github.com/kubernetes/minikube/blob/master/OWNERS
  - Using image registry.k8s.io/minikube/kube-registry-proxy:v0.0.11
  - Using image docker.io/registry:3
* Verifying registry addon...
* The 'registry' addon is enabled
deployment.apps/registry condition met
Registry inside Kubernetes: 10.107.78.112:80

Create a port-forward to access that registry:

kubectl -n kube-system port-forward service/registry 5000:80 \
  >/tmp/minikube-registry.log 2>&1 &
echo "Host registry: localhost:5000"

Expected results:

[1] 95790
Host registry: localhost:5000

Before continuing, confirm that the registry IP is available:

export REGISTRY_IP="$(
  kubectl -n kube-system get service registry \
    -o jsonpath='{.spec.clusterIP}'
)"
test -n "$REGISTRY_IP" || { echo "Registry IP not found"; exit 1; }
echo "Registry: ${REGISTRY_IP}:80"

Expected result:

Registry: 10.107.78.112:80

Store the Cosmos service account token

Create the controller namespace, then enter the Cosmos service-account token when prompted. This method does not store the token in a file or command argument.

minikube kubectl -- create namespace cosmos-ctrl \
  --dry-run=client -o yaml | minikube kubectl -- apply -f -
read -rsp 'Portal token: ' portal_token; echo
printf '%s' "$portal_token" |
  minikube kubectl -- -n cosmos-ctrl create secret generic cosmos0-portal-token \
    --from-file=token=/dev/stdin --dry-run=client -o yaml |
  minikube kubectl -- apply -f -
unset portal_token

Option1: Deploy with k8s manifests

Download the Cosmos deployment binary

curl -fsSL \
  https://dist.augmentcode.com/cosmos/cosmos-linux-amd64 |
  install -m755 /dev/stdin cosmos

Generate and apply the k8s manifests

Generate the manifests:

./cosmos k8s deploy show \
  --provider-name=my-k8s-0 \
  --registry.repository "${REGISTRY_IP}:80/snapshots" \
  -A--pool-selector="cosmos.augmentcode.com/pool-type=kvm" \
  --sandbox.default-cpu="4" \
  --sandbox.default-ram="8G" \
  --sandbox.default-disk="64G" \
  --create-namespace \
  --sandbox.create-namespace \
  --portal.address=gw.cosmos.augmentcode.com:443 \
  > cosmos-sh.k8s.yaml

Add the Minikube KVM group ID to the sandbox pod security context:

KVM_GID=$(minikube ssh -- stat -c '%g' /dev/kvm | tr -cd '0-9')
sed -i.bak \
  "s|\"serviceAccountName\":\"cosmos0-sandbox-sa\"}}|\"serviceAccountName\":\"cosmos0-sandbox-sa\",\"securityContext\":{\"supplementalGroups\":[${KVM_GID}]}}}|" \
  cosmos-sh.k8s.yaml

Inspect cosmos-sh.k8s.yaml and confirm that the sandbox pod template includes the KVM group under securityContext.supplementalGroups, run:

nano --softwrap cosmos-sh.k8s.yaml

Expected node in your yaml:

        - --pod-template={"metadata":{"labels":{"app.kubernetes.io/component":"sandbox","app.kubernetes.io/instance":"cosmos0","app.kubernetes.io/managed-by":"cosmos-k8s-deploy","app.kubernetes.io/name":"cosmos","cosmos.augmentcode.com/installation":"
cosmos0","cosmos.augmentcode.com/provider":"my-k8s-0"}},"spec":{"containers":null,"serviceAccountName":"cosmos0-sandbox-sa","securityContext":{"supplementalGroups":[104]}}}

Validate the manifests before applying them:

minikube kubectl -- apply --dry-run=client -f cosmos-sh.k8s.yaml

Expected result:

namespace/cosmos-ctrl unchanged (dry run)
namespace/cosmos-sb unchanged (dry run)
secret/cosmos0-portal-token configured (dry run)
serviceaccount/cosmos0-controller-sa unchanged (dry run)
serviceaccount/cosmos0-sandbox-sa unchanged (dry run)
role.rbac.authorization.k8s.io/cosmos0-controller-role unchanged (dry run)
rolebinding.rbac.authorization.k8s.io/cosmos0-controller-binding unchanged (dry run)
networkpolicy.networking.k8s.io/cosmos0-sandbox-ingress unchanged (dry run)
deployment.apps/cosmos0-controller configured (dry run)

Apply the manifests:

minikube kubectl -- apply -f cosmos-sh.k8s.yaml

Expected result:

namespace/cosmos-ctrl unchanged
namespace/cosmos-sb unchanged
secret/cosmos0-portal-token unchanged
serviceaccount/cosmos0-controller-sa unchanged
serviceaccount/cosmos0-sandbox-sa unchanged
role.rbac.authorization.k8s.io/cosmos0-controller-role unchanged
rolebinding.rbac.authorization.k8s.io/cosmos0-controller-binding unchanged
networkpolicy.networking.k8s.io/cosmos0-sandbox-ingress unchanged
deployment.apps/cosmos0-controller unchanged

Set again the Cosmos service account token

With the approach above, you generated cosmos-sh.k8s.yaml without the token value in it, and since kubectl apply is declarative (=the live object match the YAML) apply happened with an unset token value. Set the secret again:

read -rsp 'Portal token: ' portal_token; echo
printf '%s' "$portal_token" |
  minikube kubectl -- -n cosmos-ctrl create secret generic cosmos0-portal-token \
    --from-file=token=/dev/stdin --dry-run=client -o yaml |
  minikube kubectl -- apply -f -
unset portal_token

Reload the controllers:

minikube kubectl -- -n cosmos-ctrl rollout restart deployment/cosmos0-controller

Why it’s important: updating a Kubernetes Secret does not automatically restart the applications using it. So perform a rolling restart of the three controller pods so each process reads the new token. Kubernetes replaces the pods gradually, keeping available old pods until replacements are ready. It does not restart Minikube or the EC2 instance. The mounted Secret file may eventually update automatically, but the controller might only read it during startup; the rolling restart guarantees immediate use.

Token management is more elegantly handled via the Helm chart approach in the next section

Verify the controller pods are running

kubectl -n cosmos-ctrl get pods

Expected result:

NAME                                  READY   STATUS    RESTARTS   AGE
cosmos0-controller-6778d69f44-f9kw6   1/1     Running   0          21s
cosmos0-controller-6778d69f44-gcj77   1/1     Running   0          28s
cosmos0-controller-6778d69f44-v8nbz   1/1     Running   0          2

Configure a new env in Cosmos

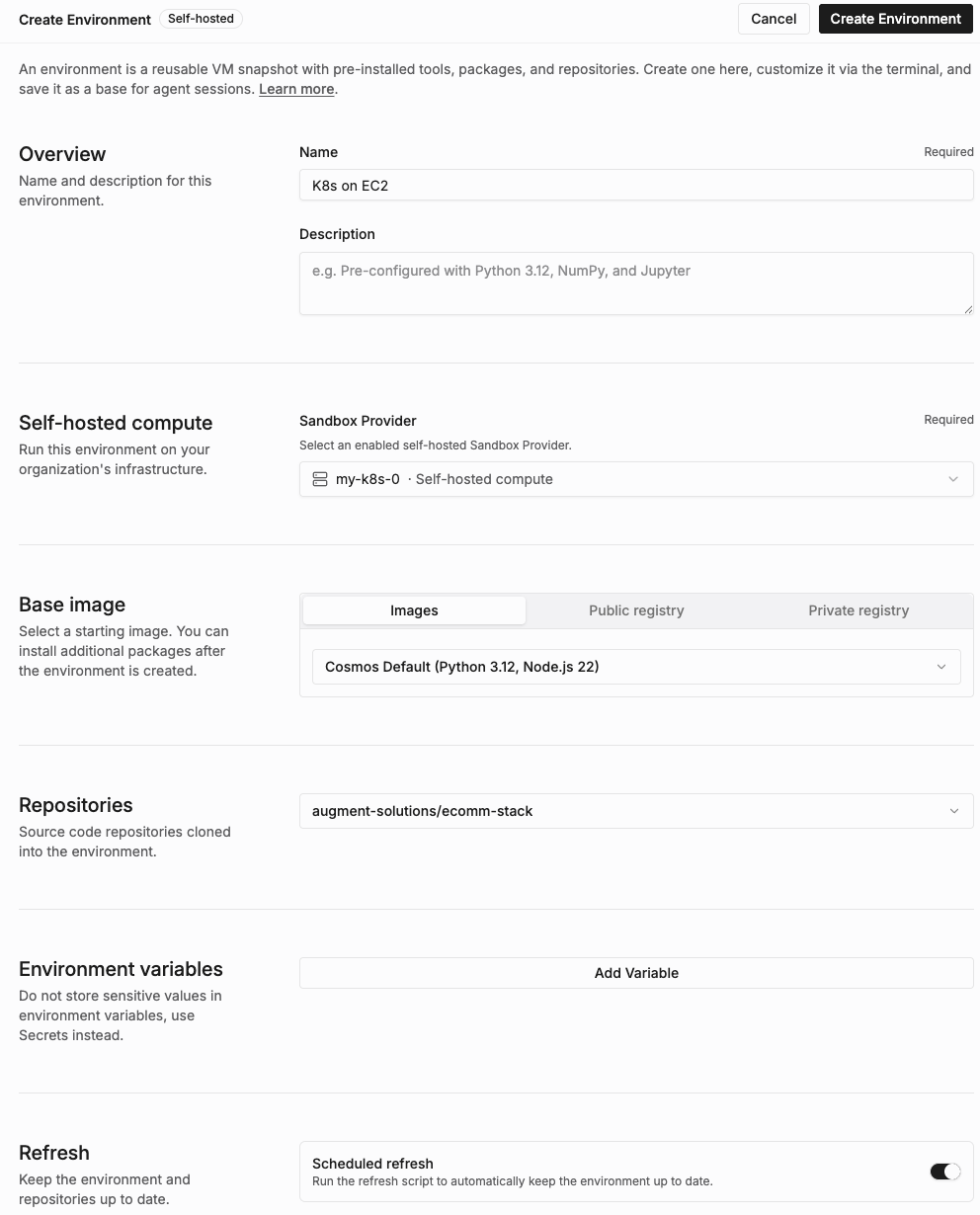

In cosmos.augmentcode.com, go to Settings > Environments > Create an environment > Self-hosted

Name: K8s on EC2
Description: Self-hosted k8s cluster on EC2
Self-hosted compute > Sandbox Provider > Select my-k8s-0
Base image: keep Cosmos Default selected
Repositories: select your repositories from github.com, gitlab.com, ADO
Refresh: toggle on
Click on Create Environment

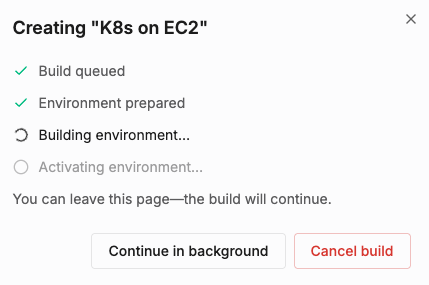

The environment will build (can range from 15sec to a few minutes)

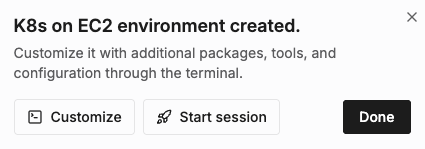

Once completed you should see this:

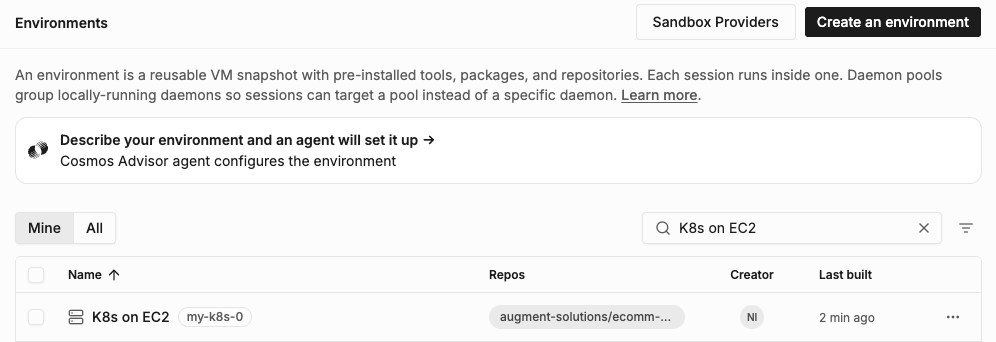

Click on Done. Now under In cosmos.augmentcode.com > Settings > Environments you’ll see your new environment with a specific self-hosted icon (different from Cloud Environments that will have a cloud icon):

Run a test Cosmos session

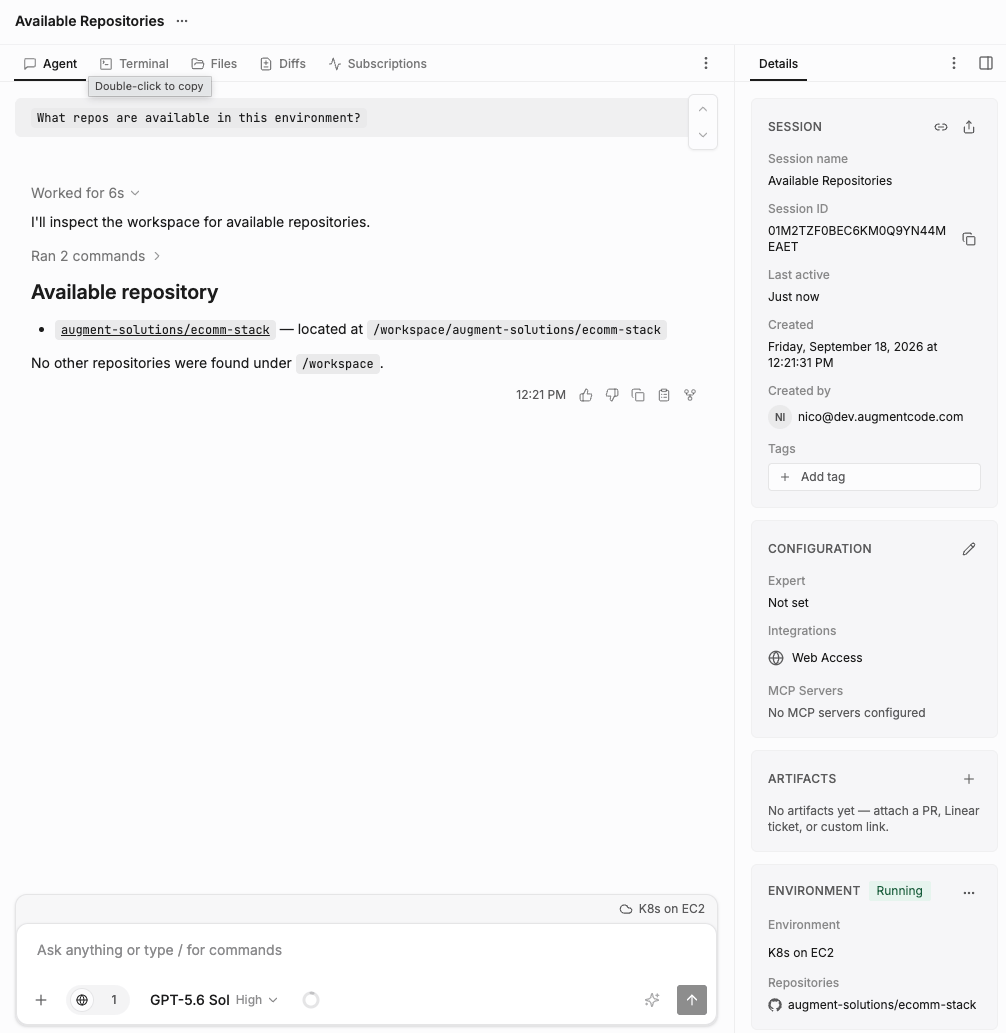

In cosmos.augmentcode.com > New session > Bottom left of the prompt box select your “K8s on EC2” self-hosted env and prompt it with What repos are available in this environment? Your session would look like this below, note the env name on the right-side drawer and the list of the repos in that env:

Congrats you’ve configured Cosmos with your self-hosted k8s cluster! 🎉

Option 2: Deploy with Helm

If you already deployed the generated manifests, the Helm command below uses --take-ownership to adopt those resources. After migration, manage the installation only with helm upgrade; do not continue applying cosmos-sh.k8s.yaml.

Install Helm

Download and verify Helm:

HELM_VERSION=v3.22.0
HELM_ARCH=$(dpkg --print-architecture)
case "$HELM_ARCH" in
  amd64|arm64) ;;
  *) echo "Unsupported: $HELM_ARCH"; exit 1 ;;
esac
helm_tmp=$(mktemp -d /tmp/helm-install.XXXXXX)
archive="helm-${HELM_VERSION}-linux-${HELM_ARCH}.tar.gz"
curl -fsSLo "$helm_tmp/$archive" "https://get.helm.sh/$archive"
curl -fsSLo "$helm_tmp/$archive.sha256sum" \
  "https://get.helm.sh/$archive.sha256sum"
(cd "$helm_tmp" && sha256sum -c "$archive.sha256sum")

Expected response:

helm-v3.22.0-linux-amd64.tar.gz: OK

Install Helm and take ownership:

tar -xzf "$helm_tmp/$archive" -C "$helm_tmp"
sudo install -o root -g root -m 0755 \
  "$helm_tmp/linux-${HELM_ARCH}/helm" /usr/local/bin/helm
rm -r -- "$helm_tmp"
hash -r
helm version --short
helm upgrade --help | grep -- --take-ownership

Expected response:

v3.22.0+g144ca65
      --take-ownership                             if set, upgrade will ignore the check for helm annotations and take ownership of the existing resources

Create the file mapped to the Cosmos service account token

Create cosmos0-values.yaml:

cat <<'EOF' > cosmos0-values.yaml
installationName: cosmos0
providerName: my-k8s-0
portal:
  tokenSecret: {source: existing, name: cosmos0-portal-token, key: token}
sandbox:
  namespace: cosmos-sb
  namespaceResource: {create: true}
EOF

The chart references the existing k8s secret without storing its value in the values file.

Calculate Minikube-specific values

CHART=oci://dist.augmentcode.com/helm/cosmos
REGISTRY_IP=$(minikube kubectl -- -n kube-system get svc registry \
  -o jsonpath='{.spec.clusterIP}')
KVM_GID=$(minikube ssh -- stat -c '%g' /dev/kvm | tr -cd '0-9')
POD_TEMPLATE=$(printf '{"spec":{"nodeSelector":{"cosmos.augmentcode.com/pool-type":"kvm"},"securityContext":{"supplementalGroups":[%s]}}}' "$KVM_GID")

Verify the node label:

minikube kubectl -- get node minikube \
  -L cosmos.augmentcode.com/pool-type

Expected result:

NAME       STATUS   ROLES           AGE   VERSION   POOL-TYPE
minikube   Ready    control-plane   25h   v1.37.0   kvm

Verify the chart:

helm show chart "$CHART" --version 0.0.0

Expected result:

Pulled: oci://dist.augmentcode.com/helm/cosmos:0.0.0
Digest: sha256:44fc78c1ba0fc510d5cc0fcc320b2e9df021db7b75aeb4e97ceb3c26c6c69bc8
apiVersion: v2
appVersion: 0.0.0
description: Cosmos self-hosted Kubernetes sandbox provider (controller, RBAC, and
  credentials).
home: https://www.augmentcode.com
keywords:
- cosmos
- augment
- sandbox
kubeVersion: '>=1.25.0-0'
name: cosmos
type: application
version: 0.0.0

Dry-run and install

Run a server-side dry run without displaying Secret values:

helm upgrade --install cosmos0 "$CHART" \
  --namespace cosmos-ctrl --version 0.0.0 \
  -f cosmos0-values.yaml \
  --set-string "registry.repository=${REGISTRY_IP}:80/snapshots" \
  --set-json "sandbox.podTemplate=${POD_TEMPLATE}" \
  --set-string sandbox.resources.cpu=4 \
  --set-string sandbox.resources.ram=8G \
  --set-string sandbox.resources.disk=64G \
  --take-ownership --dry-run=server --hide-secret

Install the release:

helm upgrade --install cosmos0 "$CHART" \
  --namespace cosmos-ctrl --version 0.0.0 \
  -f cosmos0-values.yaml \
  --set-string "registry.repository=${REGISTRY_IP}:80/snapshots" \
  --set-json "sandbox.podTemplate=${POD_TEMPLATE}" \
  --set-string sandbox.resources.cpu=4 \
  --set-string sandbox.resources.ram=8G \
  --set-string sandbox.resources.disk=64G \
  --take-ownership --wait --timeout 10m

Expected result:

Release "cosmos0" does not exist. Installing it now.
Pulled: us-central1-docker.pkg.dev/augment-research-gsc/cosmos/helm/cosmos0/cosmos:0.0.0
Digest: sha256:44fc78c1ba0fc510d5cc0fcc320b2e9df021db7b75aeb4e97ceb3c26c6c69bc8
NAME: cosmos0
LAST DEPLOYED: Fri Sep 18 19:59:27 2026
NAMESPACE: cosmos-ctrl
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Cosmos installation cosmos0 (provider my-k8s-0)
  controller: cosmos-ctrl/cosmos0-controller
  sandboxes:  namespace cosmos-sb
  portal:     gw.cosmos.augmentcode.com:443
  snapshots:  10.107.78.112:80/snapshots

API token: Secret cosmos-ctrl/cosmos0-portal-token, key token
  Referenced as an existing Secret; the chart does not manage it.

Controller pods become ready once the reverse tunnel is established:
  kubectl -n cosmos-ctrl rollout status deployment/cosmos0-controller

Verify the deployment:

helm status cosmos0 -n cosmos-ctrl
minikube kubectl -- -n cosmos-ctrl rollout status \
  deployment/cosmos0-controller
minikube kubectl -- -n cosmos-ctrl get pods

Expected result:

NAME: cosmos0
LAST DEPLOYED: Fri Sep 18 19:59:27 2026
NAMESPACE: cosmos-ctrl
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Cosmos installation cosmos0 (provider my-k8s-0)
  controller: cosmos-ctrl/cosmos0-controller
  sandboxes:  namespace cosmos-sb
  portal:     gw.cosmos.augmentcode.com:443
  snapshots:  10.107.78.112:80/snapshots

API token: Secret cosmos-ctrl/cosmos0-portal-token, key token
  Referenced as an existing Secret; the chart does not manage it.

Controller pods become ready once the reverse tunnel is established:
  kubectl -n cosmos-ctrl rollout status deployment/cosmos0-controller
deployment "cosmos0-controller" successfully rolled out
NAME                                 READY   STATUS    RESTARTS   AGE
cosmos0-controller-bf5f5cc4b-5wgdr   1/1     Running   0          34s
cosmos0-controller-bf5f5cc4b-6xjwx   1/1     Running   0          40s
cosmos0-controller-bf5f5cc4b-vkg5x   1/1     Running   0          28s

(Optional) Rotate the service account token

Note: if you have to update the secret after the cluster is already started, reset the value and reload the controllers.

Set the secret again:

read -rsp 'Portal token: ' portal_token; echo
printf '%s' "$portal_token" |
  minikube kubectl -- -n cosmos-ctrl create secret generic cosmos0-portal-token \
    --from-file=token=/dev/stdin --dry-run=client -o yaml |
  minikube kubectl -- apply -f -
unset portal_token

Reload the controllers:

minikube kubectl -- -n cosmos-ctrl rollout restart deployment/cosmos0-controller

Blueprint for EKS, GKS, AKS

You can take inspiration from the Helm chart approach above to bring your own k8s clusters, whether they are managed or not. This guide will later be updated with blueprints for EKS, GKS, AKS, stay tuned! 🚧

Getting Started

Cosmos

Auggie CLI

Other clients

Admin

Models & Pricing

Troubleshooting

Self-hosted Kubernetes

Introduction

Prerequisites

Configure AWS EC2 Ubuntu + Minikube

Create a Cosmos service account

Create a Cosmos sandbox provider

Create an AWS EC2 instance + Minikube

Deploy the EC2 instance

Install Minikube

Install Docker Engine

Install kubectl

Grant Docker access and start Minikube

Run a Docker Hello World

Label the KVM-capable node

Enable the Minikube registry via the built-in add-on and capture its cluster IP

Store the Cosmos service account token

Option1: Deploy with k8s manifests

Download the Cosmos deployment binary

Generate and apply the k8s manifests

Set again the Cosmos service account token

Verify the controller pods are running

Configure a new env in Cosmos

Run a test Cosmos session

Option 2: Deploy with Helm

Install Helm

Create the file mapped to the Cosmos service account token

Calculate Minikube-specific values

Dry-run and install

(Optional) Rotate the service account token

Blueprint for EKS, GKS, AKS

​Introduction

​Prerequisites

​Configure AWS EC2 Ubuntu + Minikube

​Create a Cosmos service account

​Create a Cosmos sandbox provider

​Create an AWS EC2 instance + Minikube

​Deploy the EC2 instance

​Install Minikube

​Install Docker Engine

​Install kubectl

​Grant Docker access and start Minikube

​Run a Docker Hello World

​Label the KVM-capable node

​Enable the Minikube registry via the built-in add-on and capture its cluster IP

​Store the Cosmos service account token

​Option1: Deploy with k8s manifests

​Download the Cosmos deployment binary

​Generate and apply the k8s manifests

​Set again the Cosmos service account token

​Verify the controller pods are running

​Configure a new env in Cosmos

​Run a test Cosmos session

​Option 2: Deploy with Helm

​Install Helm

​Create the file mapped to the Cosmos service account token

​Calculate Minikube-specific values

​Dry-run and install

​(Optional) Rotate the service account token

​Blueprint for EKS, GKS, AKS

Introduction

Prerequisites

Configure AWS EC2 Ubuntu + Minikube

Create a Cosmos service account

Create a Cosmos sandbox provider

Create an AWS EC2 instance + Minikube

Deploy the EC2 instance

Install Minikube

Install Docker Engine

Install kubectl

Grant Docker access and start Minikube

Run a Docker Hello World

Label the KVM-capable node

Enable the Minikube registry via the built-in add-on and capture its cluster IP

Store the Cosmos service account token

Option1: Deploy with k8s manifests

Download the Cosmos deployment binary

Generate and apply the k8s manifests

Set again the Cosmos service account token

Verify the controller pods are running

Configure a new env in Cosmos

Run a test Cosmos session

Option 2: Deploy with Helm

Install Helm

Create the file mapped to the Cosmos service account token

Calculate Minikube-specific values

Dry-run and install

(Optional) Rotate the service account token

Blueprint for EKS, GKS, AKS
