Integrate GitLab Self-Hosted

Introduction

In this page we’ll learn how to configure those items:

Get Gitlab to push events (ex: “new MR created”) to Augment Cosmos via webhooks
Configure Cosmos Daemons to integrate with a AWS EC2 instance/VM (where the Gitlab local repo will be cloned)
Get Augment Cosmos to interact with Gitlab via the glab cli
For 2+3, below is the flow we’ll configure with a simple MR reviewer expert:

Prerequisites

Gitlab Self-Hosted
- Permissions: maintainer or owner role for a given project at least, or owner of a group who has access to given projects
- Allowing inbound connections from other VMs on your VPC (all calls stay on your network)
AWS
- Permissions: ability to deploy ec2 instances in a VPC that has network connectivity to your Gitlab self-hosted. Outbound network connectivity to *.augmentcode.com (see https://docs.augmentcode.com/setup-augment/network-configuration)

Step 1 - Configure Gitlab to notify a Cosmos Webhook

Let’s create a new webhook in Cosmos (so Cosmos can listen to Gitlab events):

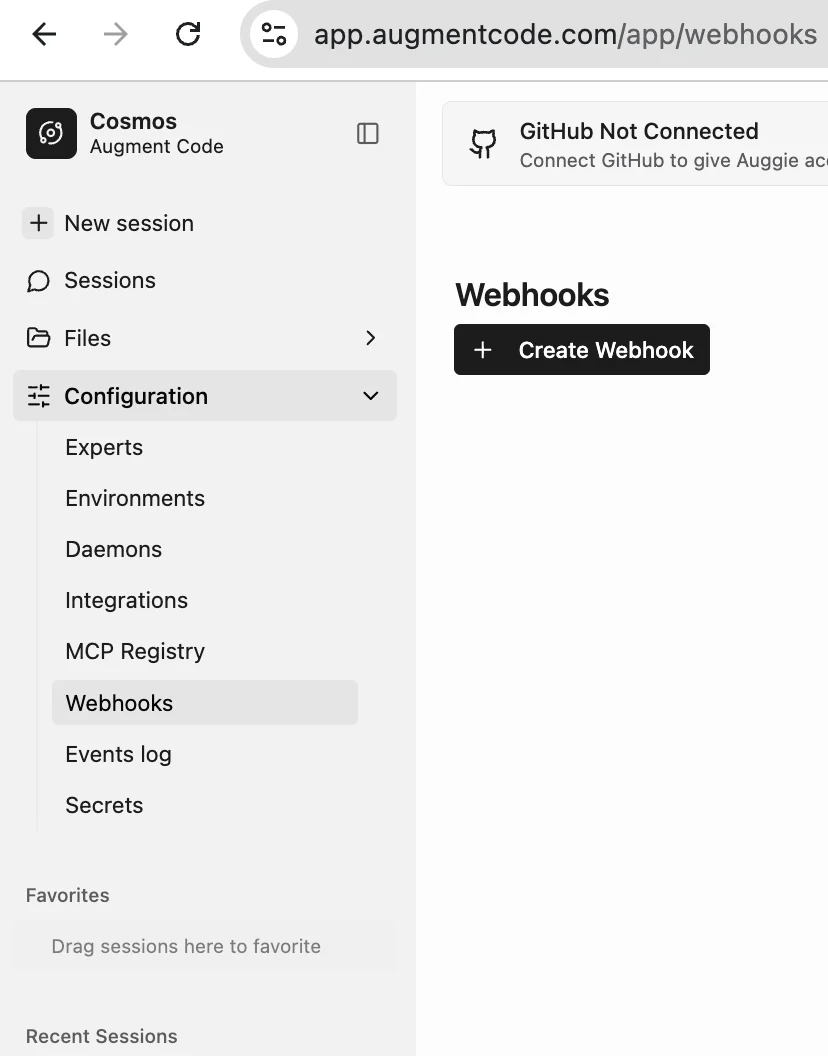

Go to Cosmos (https://app.augmentcode.com/app) > Settings > Capabilities > Webhooks > Create Webhook
That gives us a url to POST with a given Bearer token to pass as HTTP header. Curl request would look like:

curl -X POST https://XXX.api.augmentcode.com/webhooks/XXX \
  -H "Authorization: Bearer XXX" \
  -H "Content-Type: application/json" \
  -d '{"event": "test", "data": "your payload here"}'

Create a new webhook config in Gitlab (so Gitlab can POST to a given url when certain Gitlab events occur)

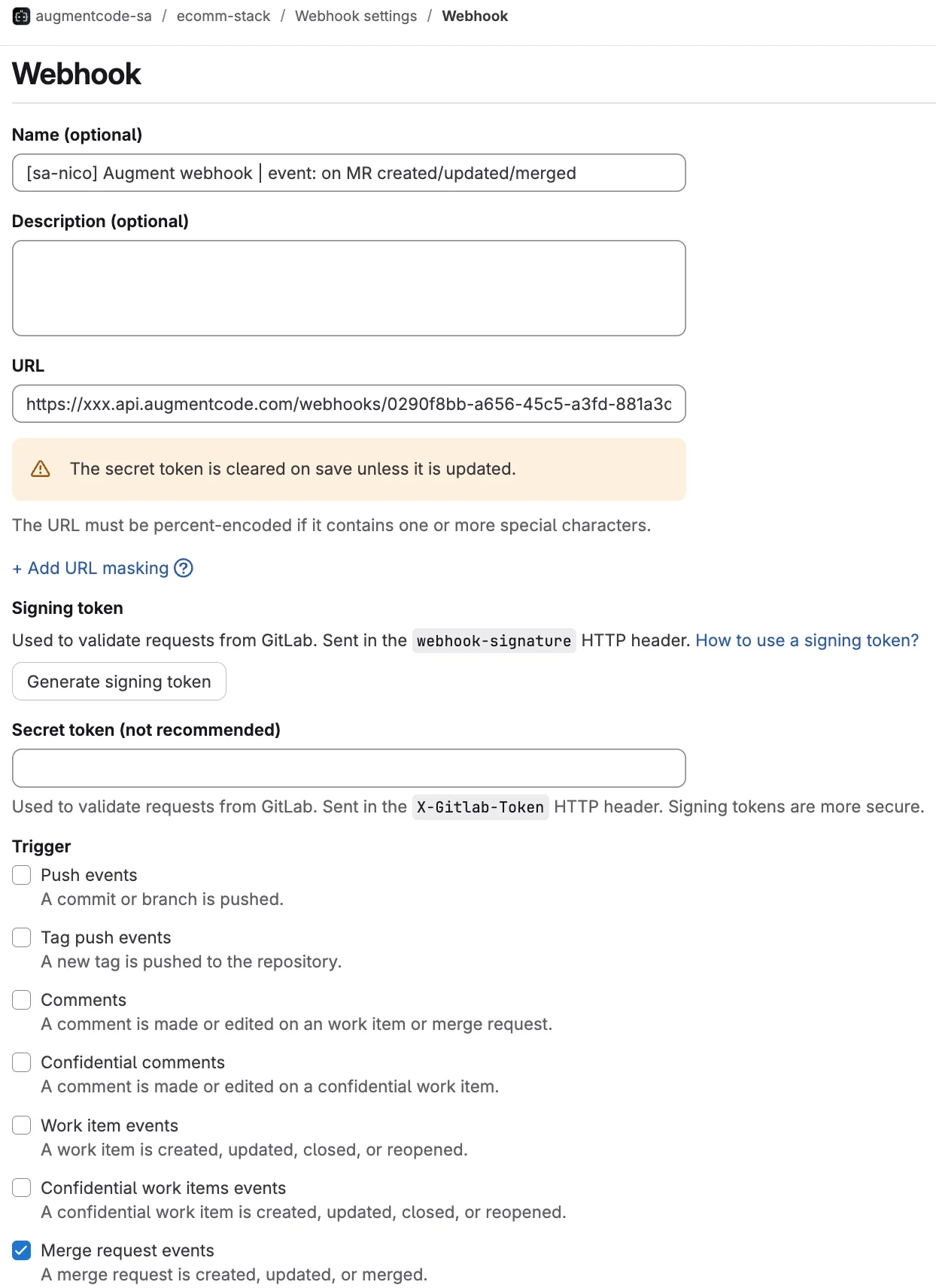

Go to your Gitlab repo > Settings > Webhooks > Add new webhook
Add
- Name
- URL: the Cosmos webhook url
- DO NOT FILL SECRET TOKEN (that for a separate X-Gitlab-Token header that Cosmos would ignore)
- Trigger: Merge request events

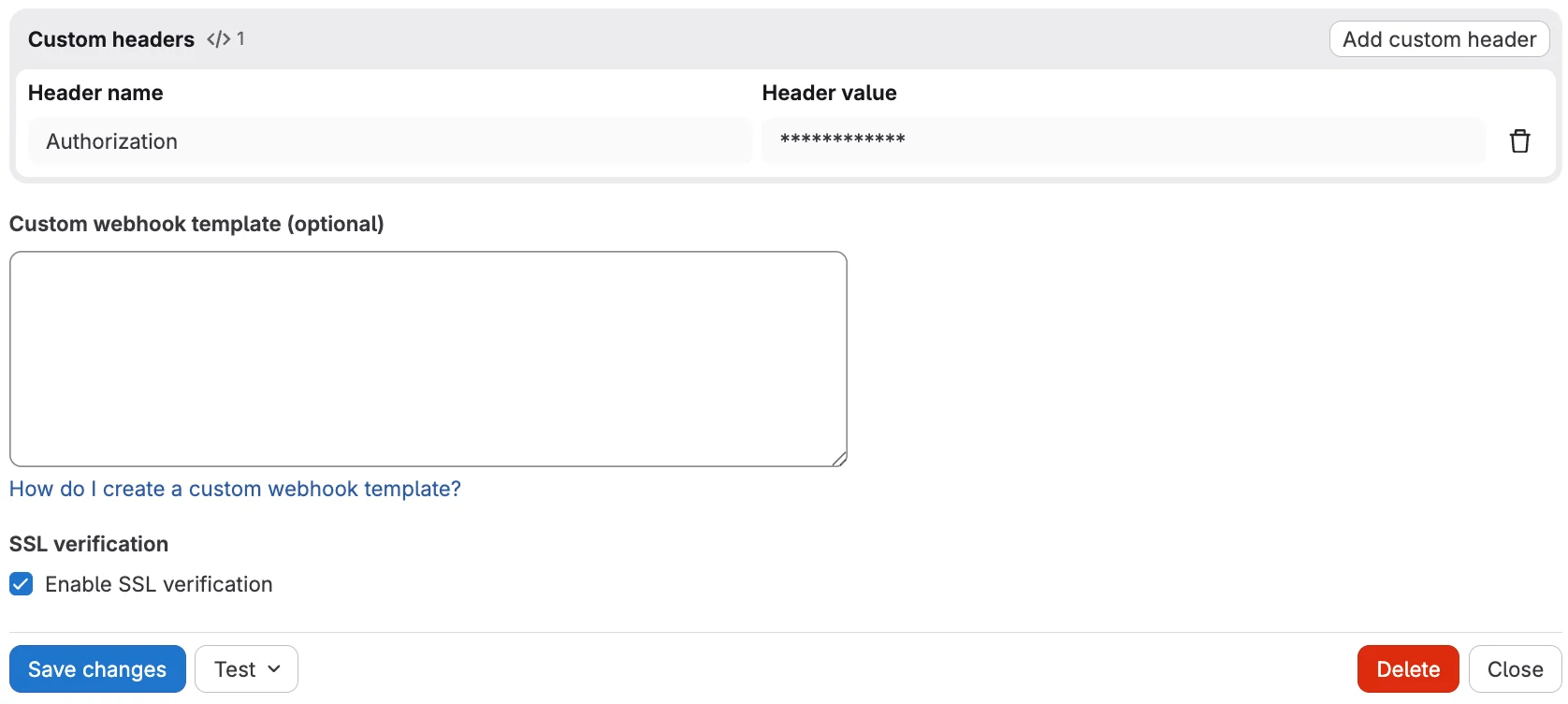

- Custom header > Add custom header
  - Header name: Authorization
  - Header value: Bearer THE_SECRET_PROVIDED_BY_COSMOS
- Keep Enable SSL verification selected
Save changes

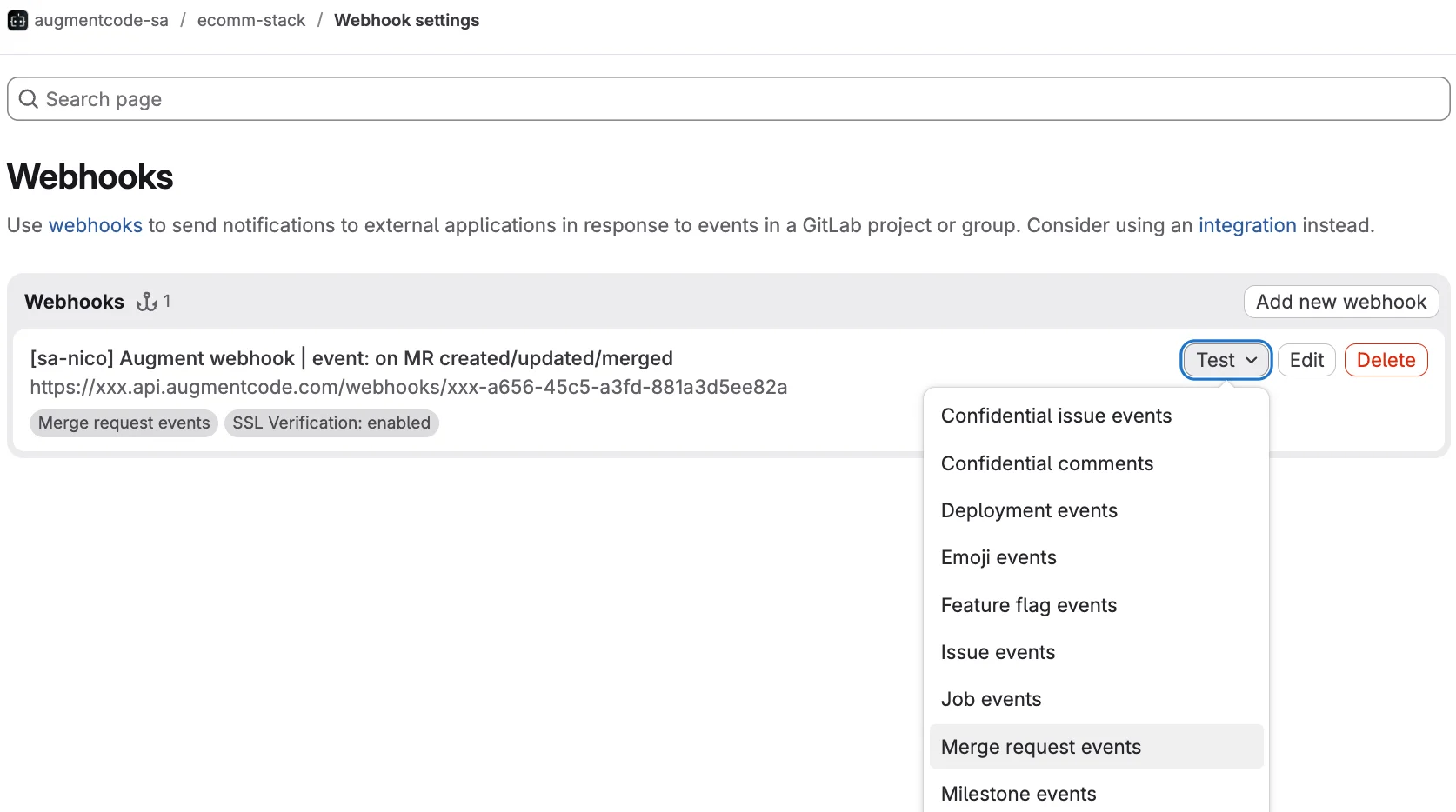

Now run a test: in Gitlab go back to your list of Gitlab Webhooks (Settings > Webhooks) > click on the Test dropdown > Merge request events Now go back to Cosmos and check that Cosmos received the event:

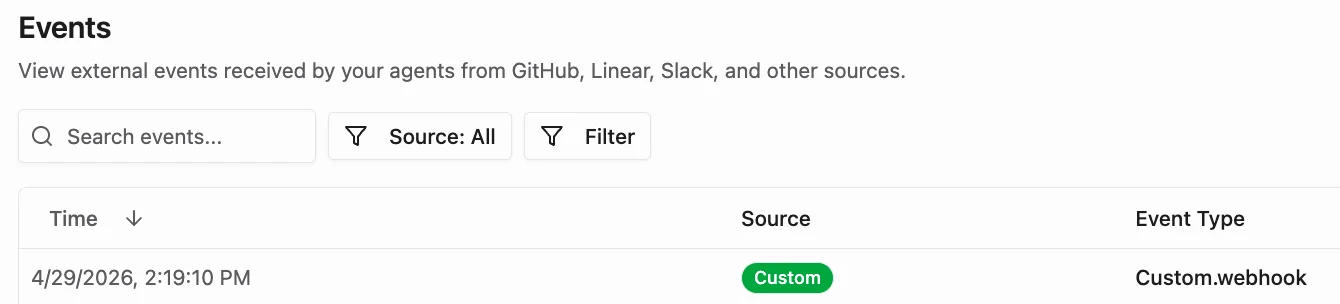

https://app.augmentcode.com/app > Settings > Automations > Event Log. You should see your event with source “Custom”

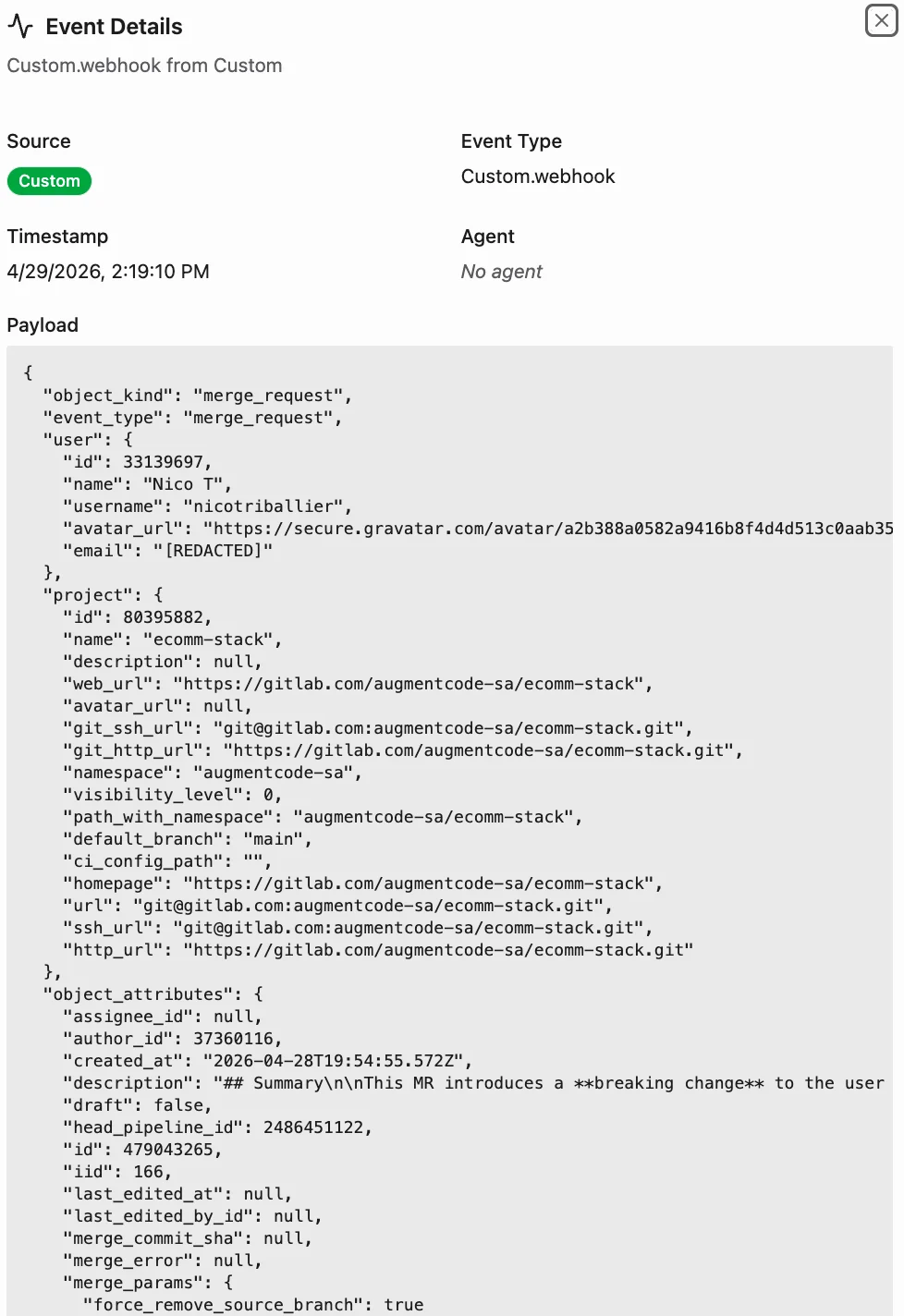

Click on the event: At this point Gitlab can invoke Cosmos ✅.

Step 2 - Create a Gitlab Service Account

For headless automation and to start agentic workflows based on gitlab events, we’ll create a dedicated Gitlab service account and its access token:

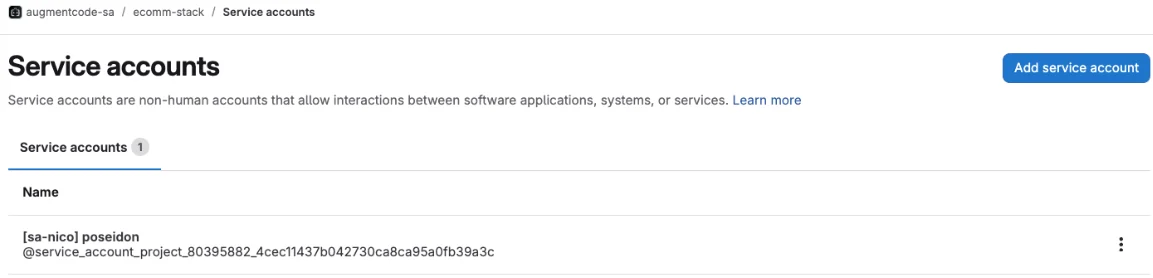

Gitlab repo > Settings > Service accounts > Add service account > add a name
Then next to that service account > 3 dots > manage access tokens

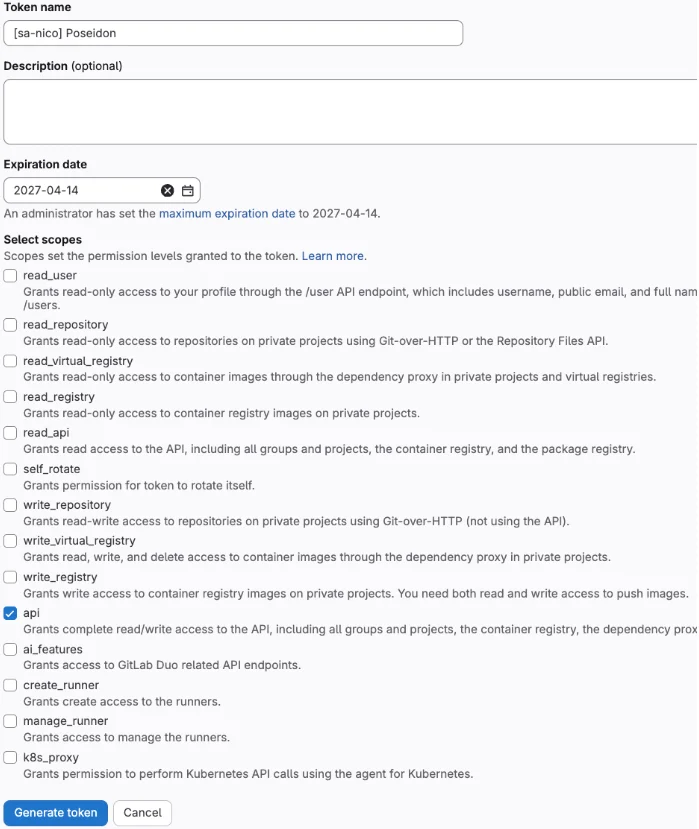

Add new token
- Add token name
- Set a max expiration date (keep it mind that this access token would have to be rotated on the gitlab side, and its new value would have to also be updated in the Augment’s secret manager - that’s a common sec best practice)
- Select scope “api”
- Click on Generate token

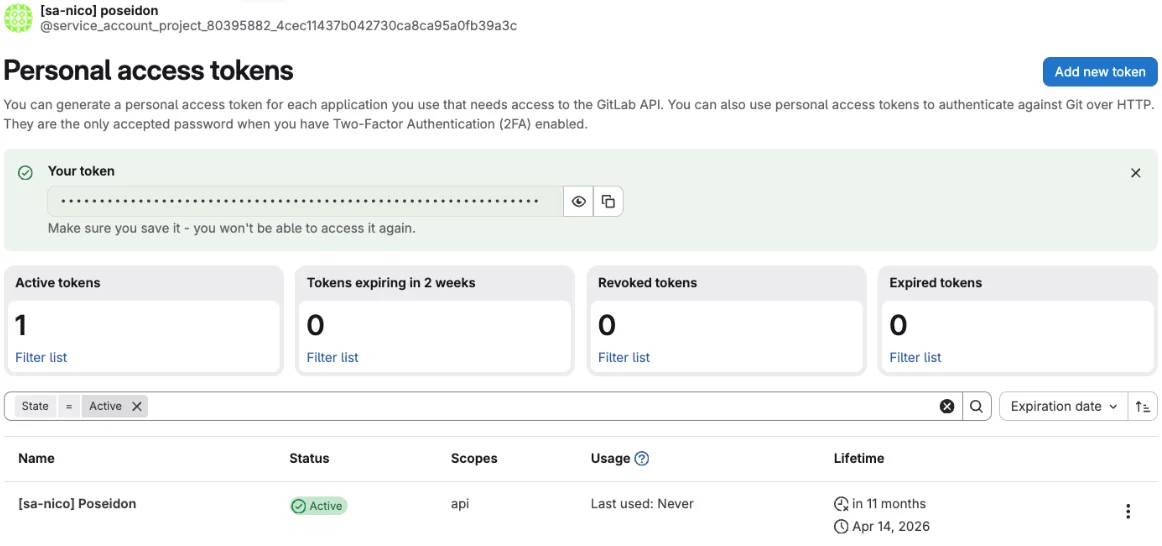

Click on the copy icon to copy the GITLAB_TOKEN in your clipboard Now go to Augment Agent Cloud’s secret manager: https://app.augmentcode.com > Settings > Capabilities > Secrets > Add Secret > Environment Variable
Name: GITLAB_TOKEN
Value: the value you copied from Gitlab
Keep Visibility - Shared toggled off
Keep “Automatically install in VMs” selected
Click on Create Secret Now get back to Gitlab and add your Gitlab service account with role=developer onto the repos where the service account should be able to read/post:

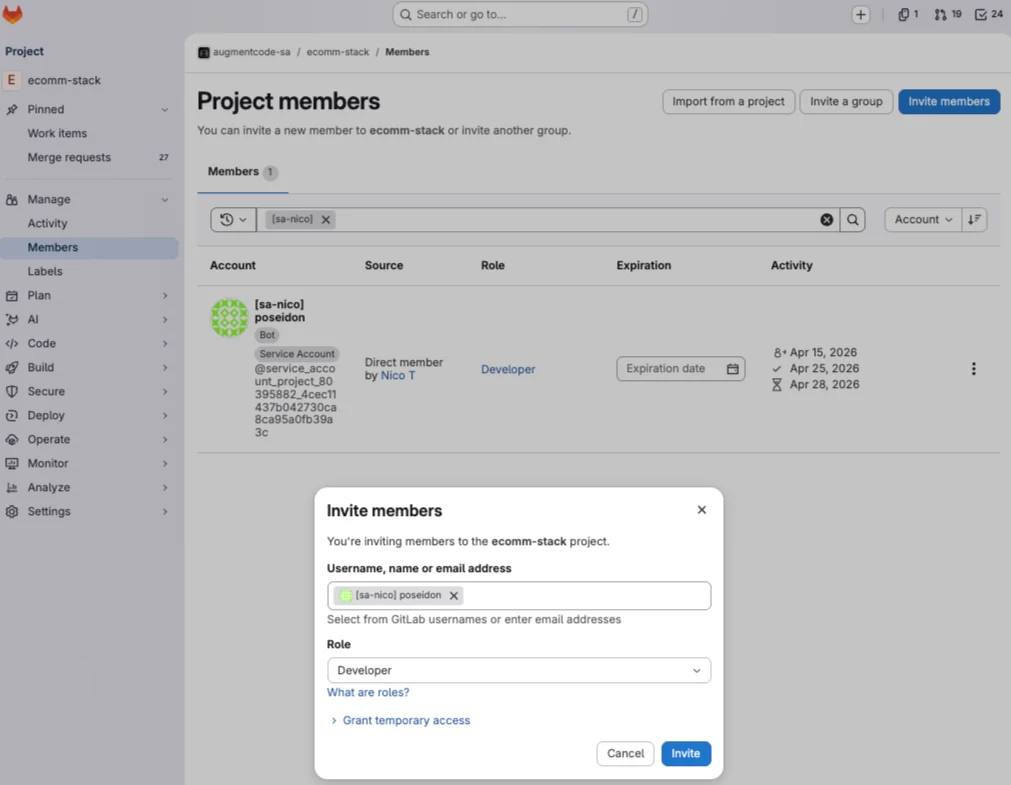

Go to your Gitlab repo(s) > Manage > Members > Invite members > add your Gitlab service account and click on Invite

Step 3 - Configure your VM with local gitlab repo, glab cli and Cosmos Daemon

In this section we’ll configure a AWS EC2 VM with the following:

cloned local gitlab repo
glab cli so Cosmos local agents can communicate to Gitlab
Cosmos Daemon (to establish a outbound websocket tunnel from AWS to Cosmos) Create a new AWS EC2 Linux instance (ex: Ubuntu x86_64 - ami-091138d0f0d41ff90) in a AWS VPC that will be able to reach Gitlab Self-Hosted. Then SSH onto the AWS EC2 instance:

Install git

sudo apt update && sudo apt install git -y

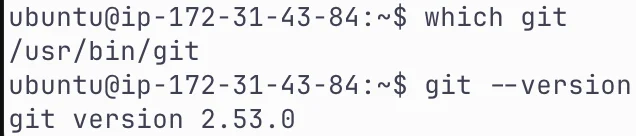

Verify the installation

which git
git --version

Install Auggie

Install NVM

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash

Refresh the terminal profile

source ~/.bashrc

Install the latest Long-Term Support (LTS) version of Node & NPM

nvm install --lts

Verify

node -v
npm -v

Install Auggie

npm install -g @augmentcode/auggie

Create a Augment service account that will be used to authenticate Auggie

auggie login

Copy the auth url into your desktop web browser, authenticate, then copy the json with the code back into your terminal where you sshed into your EC2 instance This will load Auggie in interactive mode. Quit by pressing CTRL-C At this point your Auggie is authenticated with your human identity

Retrieve GITLAB_TOKEN from the Cosmos secret manager

export GITLAB_TOKEN="$(
  auggie cloud secret get GITLAB_TOKEN --reveal 2>/dev/null \
    | grep -E -i '^[[:space:]]*value:[[:space:]]*.+$' \
    | head -n 1 \
    | sed -E 's/^[[:space:]]*[Vv][Aa][Ll][Uu][Ee]:[[:space:]]*//'
)"

Verify the token value:

echo $GITLAB_TOKEN

Clone your gitlab repo locally git clone the gitlab repo using the “2 layers approach” (ORG_NAME/REPO_NAME). Edit and run this command from your root folder:

mkdir -p ~/workspace/augmentcode-sa && git clone https://oauth2:$GITLAB_TOKEN@gitlab.com/augmentcode-sa/ecomm-stack.git ~/workspace/augmentcode-sa/ecomm-stack && ls -d ~/workspace/*/*/.git

Your folder structure would look like:

/home/ubuntu/workspace/augmentcode-sa/ecomm-stack/.git

Reuse your existing tools/cron jobs to automatically refresh/fetch the repo(s) locally.

Install the glab cli Make sure you’re in your root folder, install the glab cli using this command:

wget https://gitlab.com/gitlab-org/cli/-/releases/v1.93.0/downloads/glab_1.93.0_linux_amd64.deb && sudo dpkg -i glab_1.93.0_linux_amd64.deb && glab auth status

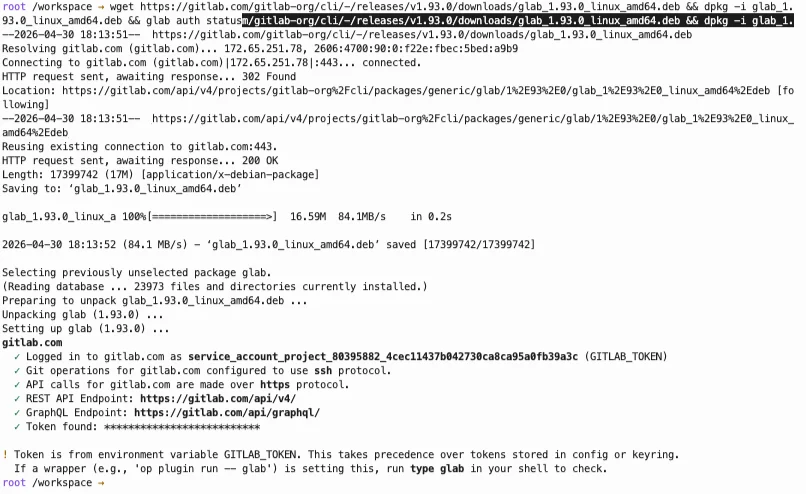

You should that response indicating that glab is properly installed and authenticated:

Install the Cosmos Daemon to connect your local VM to Cosmos Navigate to your /workspace/ORG_NAME folder on your VM, and edit and run

auggie daemon \
  --workspace ~/workspace/augmentcode-sa/ecomm-stack \
  --add-workspace ~/workspace/augmentcode-sa/REPO_B \
  --add-workspace ~/workspace/augmentcode-sa/REPO_C \
  --allow-indexing

(note: Augment is actively working on an auto-discovery mechanism with daemons, stay tuned)

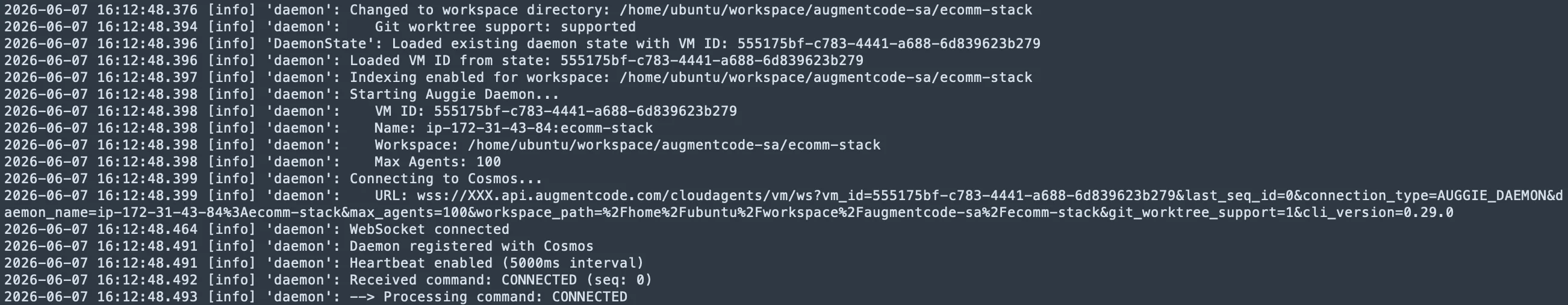

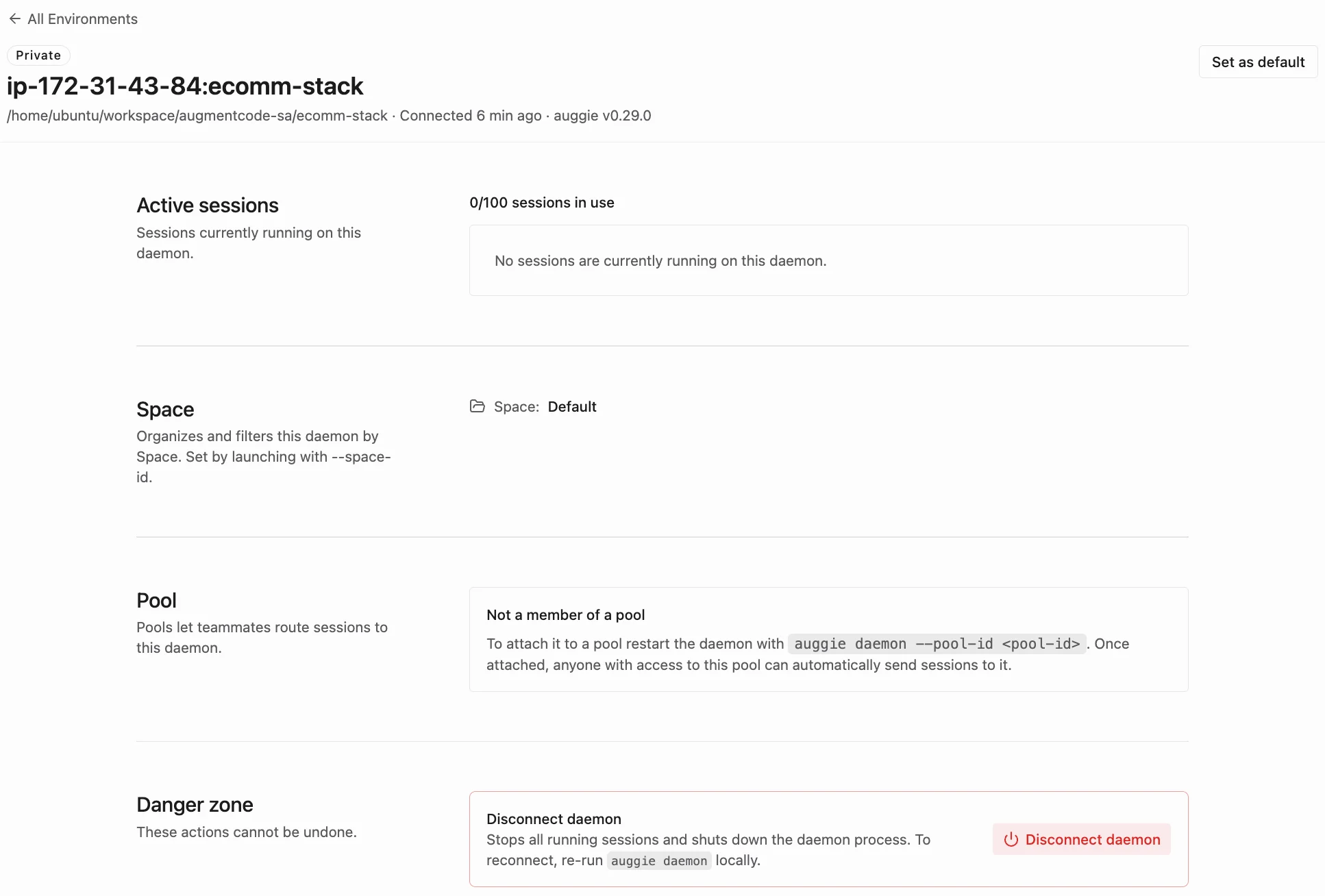

You can see the daemon running from Cosmos Settings > Foundation > Environments (https://cosmos.augmentcode.com/environments)

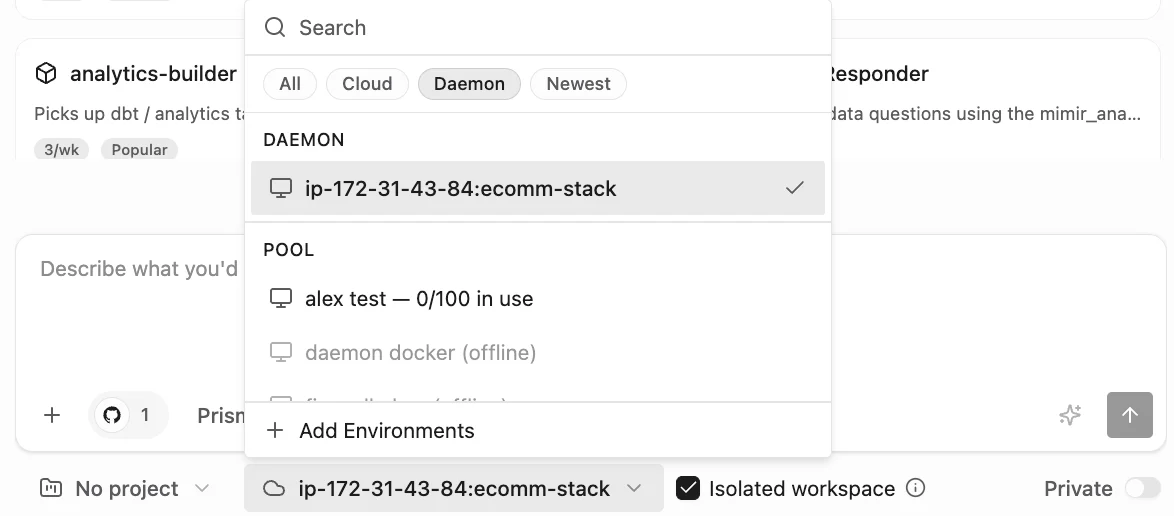

If you click on it, then top right you can set this daemon as default environment to run your agents

Step 4 - Connectivity Test

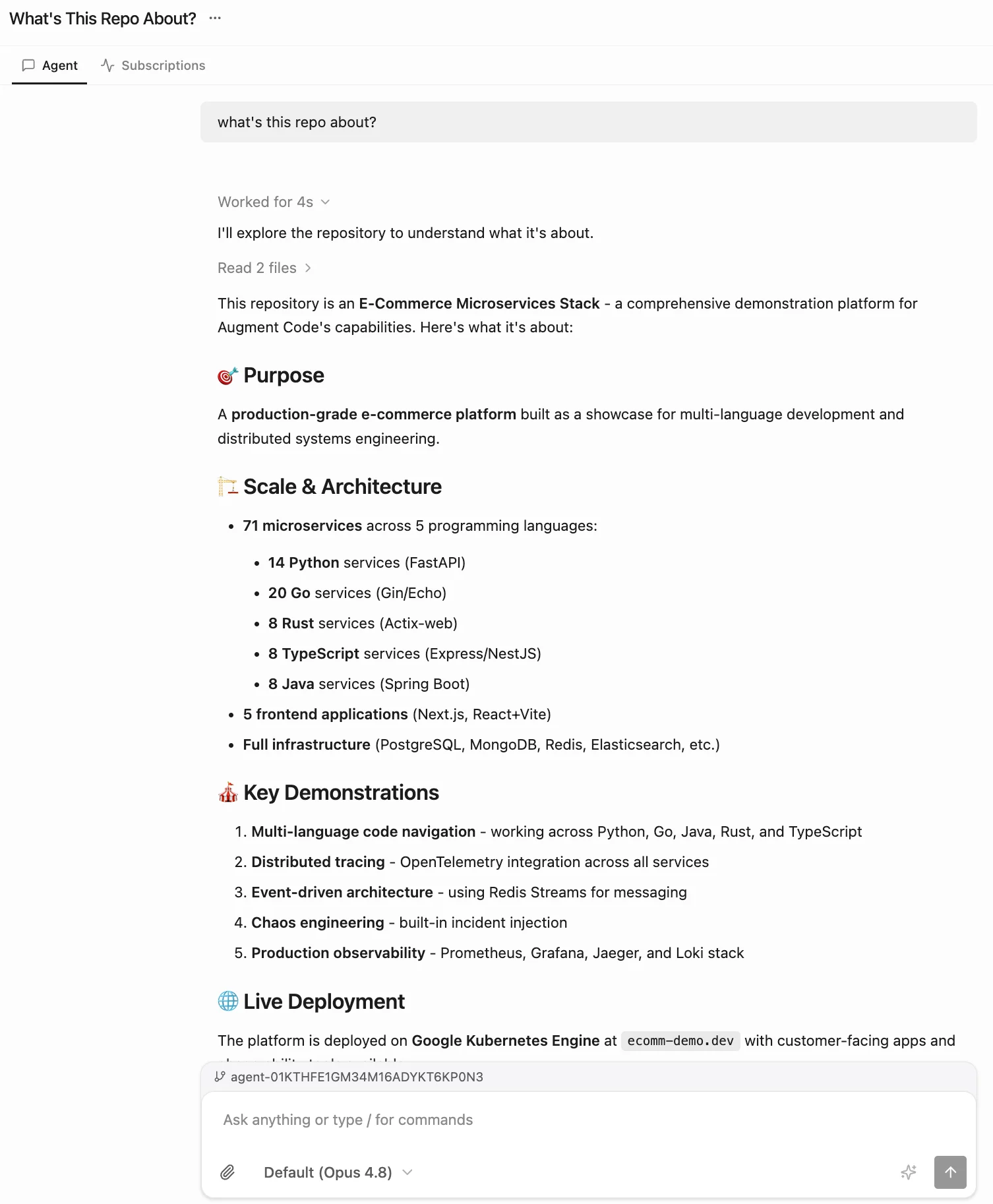

Let’s try to create a session in Cosmos (cloud) and verify it can connect to the VM, make sense of the local repo and from that VM reach out to Gitlab. Go to Cosmos > New Session (https://cosmos.augmentcode.com/home) Under the prompt, click on the drowdown list with the cloud icon > select daemon > select your daemon

Prompt the session with:

What's this repo about?

Connectivity between Cosmos (cloud) and your local VM verified ✅ Now prompt the session with something like:

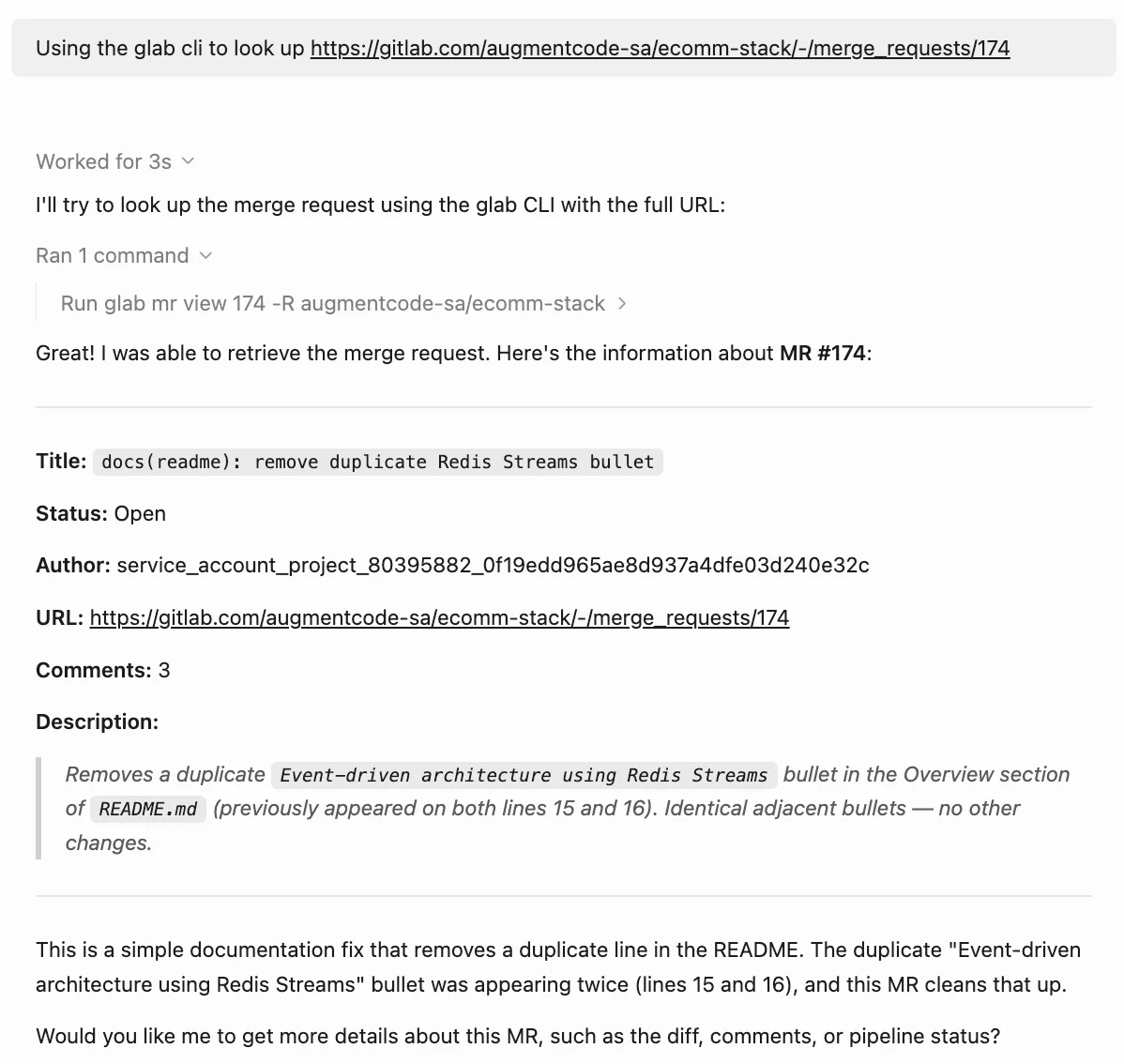

Using the glab cli to look up https://gitlab.com/augmentcode-sa/ecomm-stack/-/merge_requests/174

Connectivity between Cosmos (cloud) ↔ your local VM ↔ your Gitlab verified ✅

Step 5 (optional) - Use a deployment script to automate the steps above

First you’ll need to authenticate into Augment programmatically, 2 options:

Authenticate via Personal API Token (available to all Augment users) Go to https://app.augmentcode.com/settings/personal-api-tokens > Add token, Add Description (ex: Cosmos01), no expiration > Next > Download the json: this will download a session.json on your laptop
Alternatively (recommended) authenticate via a service account (only for Augment admins) Go to https://app.augmentcode.com/settings/service-accounts. > Add Service Account > Add API token > Download json: this will download a session.json on your laptop Once you get your session.json, you’ll be able to inject its content as env variable into your VM with the name AUGMENT_SESSION_AUTH and Auggie will automatically pick up on it. From your VM, logout from your previous session:

auggie logout

Inject the AUGMENT_SESSION_AUTH variable with the content of your session.json:

export AUGMENT_SESSION_AUTH='{
  "accessToken": "XXX",
  "tenantURL": "https://XXX.api.augmentcode.com/",
  "scopes": [
    "read",
    "write"
  ]
}'

You can verify it worked fine by running auggie and then /about to see your Augment profile Now edit and run the Terraform script below: variables.tf This file defines the input variables required for deployment. The execution expects your AWS API credentials and the AUGMENT_SESSION_AUTH JSON string.

variable "aws_access_key" {
  description = "AWS Access Key ID"
  type        = string
  sensitive   = true
}

variable "aws_secret_key" {
  description = "AWS Secret Access Key"
  type        = string
  sensitive   = true
}

variable "aws_region" {
  description = "AWS Region where the AMI is located"
  type        = string
  default     = "us-east-1"
}

variable "augment_session_auth" {
  description = "The JSON string contents of your downloaded Augment session.json"
  type        = string
  sensitive   = true
}

variable "instance_type" {
  description = "EC2 Instance Size"
  type        = string
  default     = "t3.medium"
}

main.tf This script provisions the infrastructure and leverages a custom user_data execution block to run every automated install script seamlessly from your tutorial.

provider "aws" {
  access_key = var.aws_access_key
  secret_key = var.aws_secret_key
  region     = var.aws_region
}

# Security Group setup allowing outbound access for the websocket daemon tunnel
resource "aws_security_group" "cosmos_sg" {
  name        = "cosmos-daemon-sg"
  description = "Allow outbound traffic for Cosmos Daemon websocket connections"

  # Outbound rule allowing connection to Augment Cloud & GitLab
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  # Optional: Uncomment if you want to SSH into the instance for debugging
  # ingress {
  #   from_port   = 22
  #   to_port     = 22
  #   protocol    = "tcp"
  #   cidr_blocks = ["0.0.0.0/0"]
  # }
}

resource "aws_instance" "cosmos_vm" {

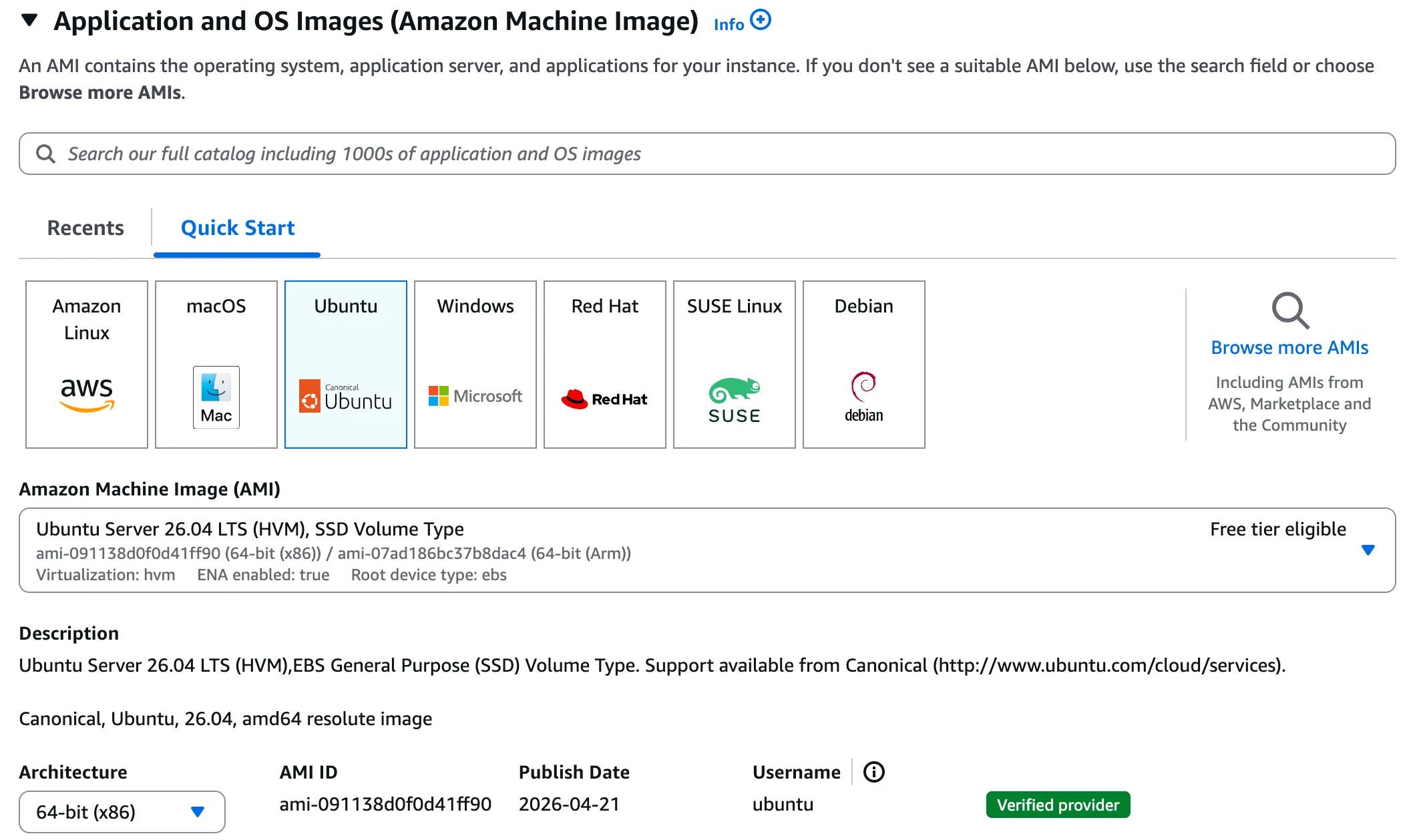

  ami                    = "ami-091138d0f0d41ff90" # Ubuntu 26.04 LTS from tutorial
  instance_type          = var.instance_type
  vpc_security_group_ids = [aws_security_group.cosmos_sg.id]

  tags = {
    Name = "Cosmos-GitLab-Daemon-Host"
  }

  # Automated provisioning script (Step 3 & Step 5 of the tutorial)
  user_data = <<-EOF
              #!/bin/bash
              # 1. Update and install basic dependencies
              apt-get update -y
              apt-get install -y git wget

              # 2. Setup NVM, Node.js (LTS), and Auggie CLI for the ubuntu user context
              sudo -u ubuntu -i bash << 'INNER_EOF'
              curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash
              export NVM_DIR="$HOME/.nvm"
              [ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh"
              nvm install --lts
              npm install -g @augmentcode/auggie
              INNER_EOF

              # 4. Install GitLab GLAB CLI globally
              wget https://gitlab.com/gitlab-org/cli/-/releases/v1.93.0/downloads/glab_1.93.0_linux_amd64.deb
              dpkg -i glab_1.93.0_linux_amd64.deb
              rm glab_1.93.0_linux_amd64.deb

              # Persist Augment Auth token for the ubuntu profile shell environment
              echo "export AUGMENT_SESSION_AUTH='${var.augment_session_auth}'" >> /home/ubuntu/.bashrc

              # 3. Automated Repository Cloning Setup Script
              cat << 'INNER_EOF' > /home/ubuntu/setup_repo.sh
              #!/bin/bash
              export NVM_DIR="$HOME/.nvm"
              [ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh"
              export AUGMENT_SESSION_AUTH='${var.augment_session_auth}'

              # Fetch GITLAB_TOKEN programmatically from Cosmos Secret Manager
              export GITLAB_TOKEN=$(auggie cloud secret get GITLAB_TOKEN --reveal 2>/dev/null | grep -E '^[[:space:]]*value: [[:space:]]*.+$' | head -n 1 | sed -e 's/^[[:space:]]*[Vv][Aa][Ll][Uu][Ee]:[[:space:]]*//')

              if [ -n "$GITLAB_TOKEN" ]; then
                mkdir -p /home/ubuntu/workspace/augmentcode-sa
                git clone https://oauth2:$GITLAB_TOKEN@gitlab.com/augmentcode-sa/ecomm-stack.git /home/ubuntu/workspace/augmentcode-sa/ecomm-stack
              else
                echo "Error: Failed to safely extract GITLAB_TOKEN from Augment Cloud Secrets" >&2
              fi
              INNER_EOF

              chmod +x /home/ubuntu/setup_repo.sh
              sudo -u ubuntu -i /home/ubuntu/setup_repo.sh

              # 5. Create a systemd unit service to run the Daemon persistently in the background
              cat << 'INNER_EOF' > /etc/systemd/system/auggie-daemon.service
              [Unit]
              Description=Auggie Cosmos Daemon Background Service
              After=network.target

              [Service]
              Type=simple
              User=ubuntu
              Environment="HOME=/home/ubuntu"
              Environment="AUGMENT_SESSION_AUTH=${var.augment_session_auth}"
              ExecStart=/bin/bash -l -c "auggie daemon --workspace /home/ubuntu/workspace/augmentcode-sa/ecomm-stack --allow-indexing"
              Restart=always
              RestartSec=10

              [Install]
              WantedBy=multi-user.target
              INNER_EOF

              # Start and register the service daemon
              systemctl daemon-reload
              systemctl enable auggie-daemon.service
              systemctl start auggie-daemon.service
              EOF
}

output "instance_id" {
  value       = aws_instance.cosmos_vm.id
  description = "The ID of the newly deployed EC2 instance."
}

terraform.tfvars Create this file locally to supply your required parameters. Do not commit this file to version control systems.

aws_access_key       = "XXX"
aws_secret_key       = "XXX/XXX/bPxRfiCYEXAMPLEKEY"
aws_region           = "us-east-1" # Match the region your AMI is registered in

augment_session_auth = <<EOF
{
  "accessToken": "YOUR_ACTUAL_AUGMENT_ACCESS_TOKEN",
  "tenantURL": "https://XXX.api.augmentcode.com/",
  "scopes": [
    "read",
    "write"
  ]
}
EOF

Initialize, plan and run Terraform:

terraform init
terraform plan
terraform apply -auto-approve
