Integrate Twingate

Introduction

In this page we’ll explore how to configure a Cosmos cloud environment to connect to resources (ex: a local .html file) on a remote Linux VM via Twingate.

Prerequisites

To configure the connectivity between Cosmos and ADO:

Cosmos
- you must have edit access to the cloud env that will connect to a Twingate-protected resource
Twingate
- you need a Twingate paid account (or active free trial)
- you must have permissions to create a service account
- you must have permissions to add a new connector: set of access token + refresh token to deploy a connector on the resource/network that will later be accessed by the Cosmos cloud env
AWS/GCP/Azure/on-prem
- you must have SSH access to the Linux VM - this is where the Twingate connector will be deployed

Step 1 - Twingate Connector configuration

Go to your Twingate admin console > Network > Overview > Deploy connector > Cloud & Infrastructure > Linux. You should see “Install and Launch Connector Service”:

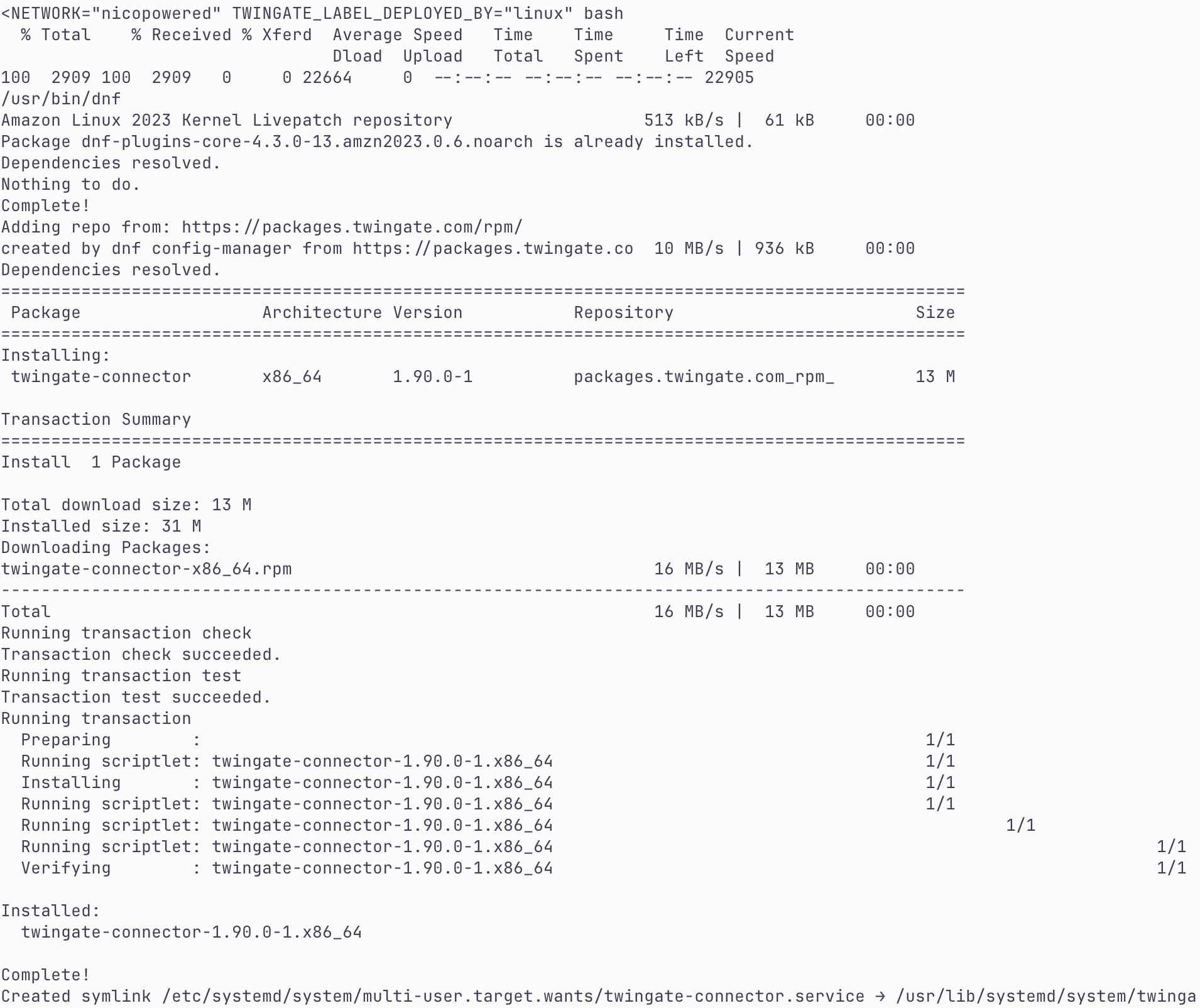

Click on ‘Copy Command’, then ssh into your Linux VM and run the command copied above. You should see this:

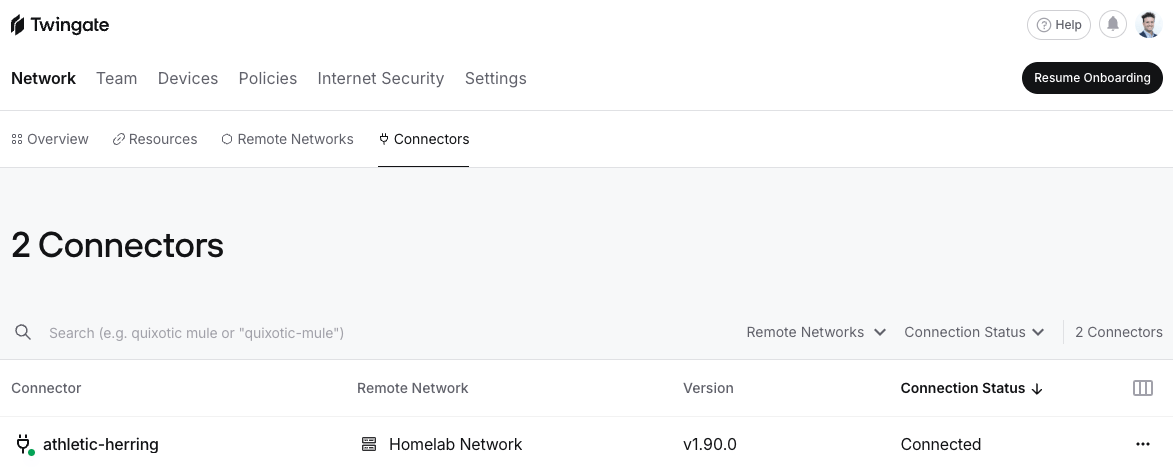

Then go back to Twingate > Networks > Connectors and observe that your connector has connected:

Now let’s create a test python server on that VM (that we’ll later allow-list as Resource in Twingate). First, get the private IP of that VM. From that VM run:

hostname -I | awk '{print $1}'

You’ll get something like: 172.31.28.194 From that VM:

Create a test html file:

echo "Hello, World!" > index.html

Start a test python server (which will be serving the html file):

python3 -c "import http.server, urllib.parse; H = type('H', (http.server.SimpleHTTPRequestHandler,), {'translate_path': lambda s, p: http.server.SimpleHTTPRequestHandler.translate_path(s, urllib.parse.urlparse(p).path)}); http.server.HTTPServer(('0.0.0.0', 8000), H).serve_forever()"

You should see this:

Step 2 - Twingate Service Account configuration

Go to your Twingate admin console > Team > Services > Click on “+ Service” > Service Name = Cosmos > Create Service Account:

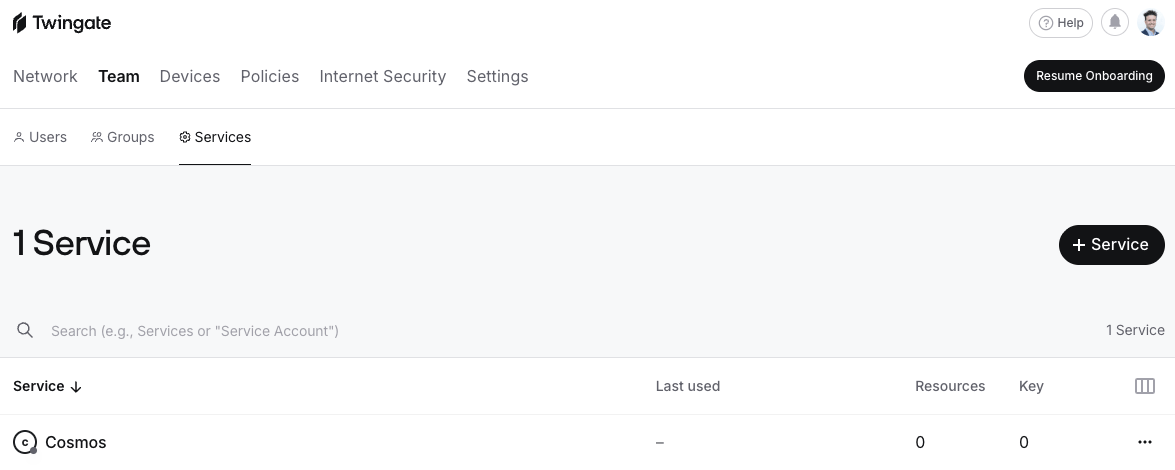

You should see this:

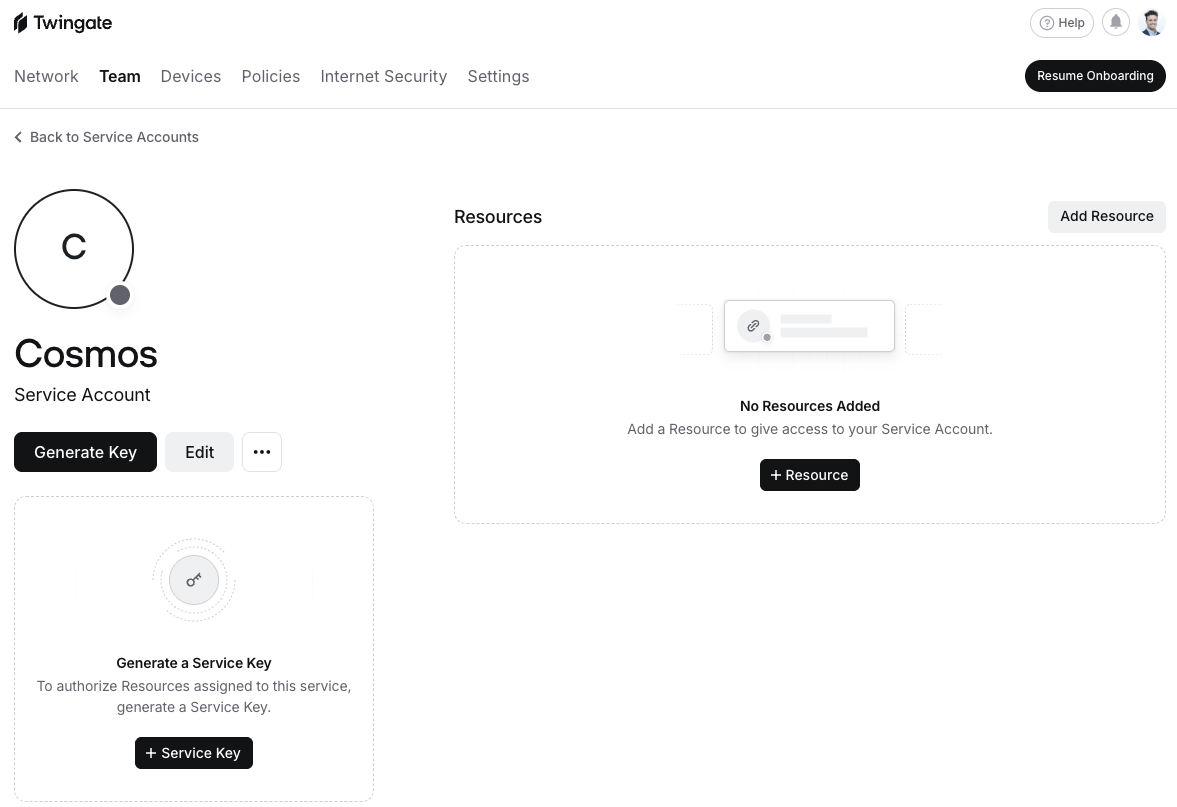

Click on the service account name, the click on “+Service Key”:

Keep expiration = 365 days, then Generate:

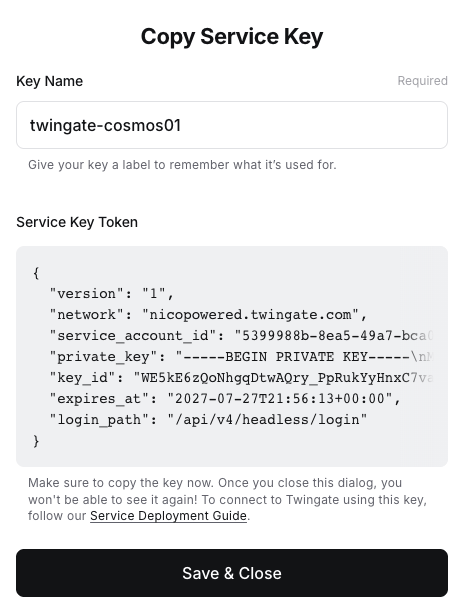

You’ll be offered to rename your key and download the service key token (ex: twingate-cosmos01.json). Then click on “Save & Close”

Step 3 - Twingate Resource configuration

Now we’ll add the Linux VM as “Resource” in Twingate. Go to your Twingate admin console > Network > Resources > “+Resource” > Select your network, enter as name “Linux VM”, enter the private IP of your Linux VM > click on Create Resource:

Then select your Cosmos service account > Grant Access:

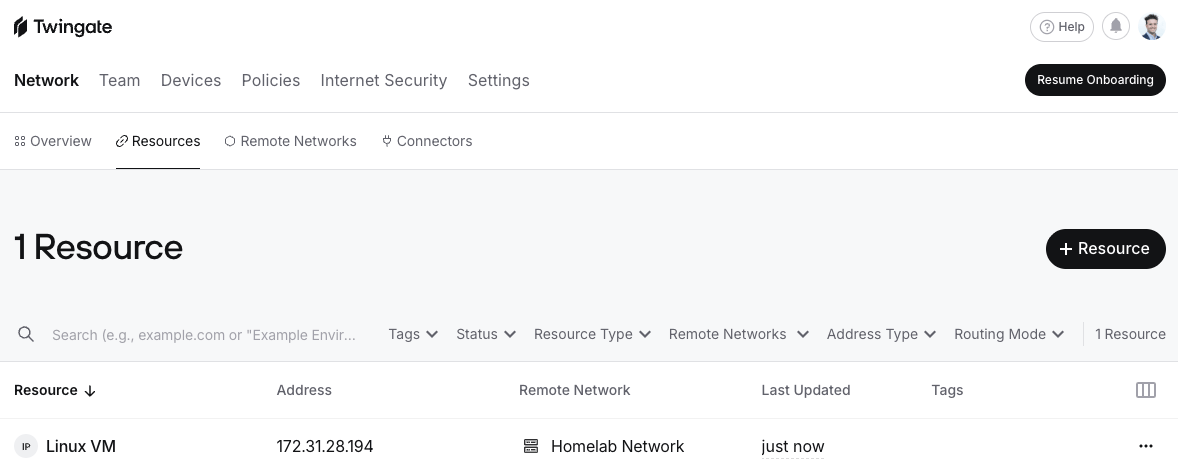

You should see this:

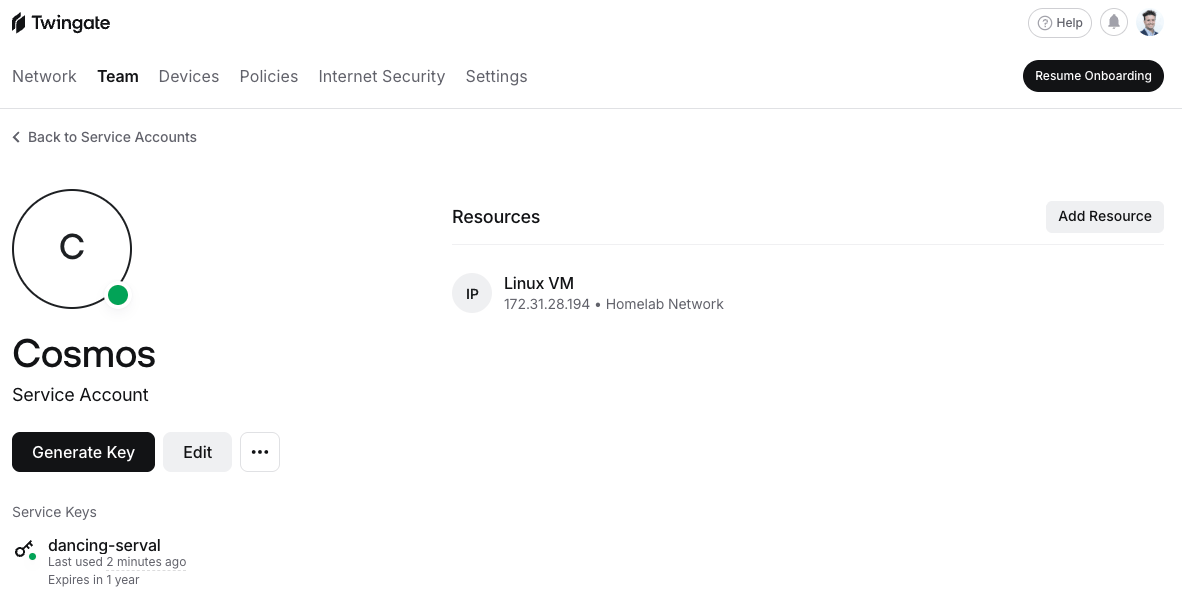

If you now go to your Cosmos service account view (Twingate admin console > Team > Services > Cosmos) you should see the granted resource:

Step 4 - Cosmos cloud env configuration

Go to your Cosmos cloud env from where you’d like to access your Twingate-protected resource. If you don’t have any, create a brand new env: cosmos.augmentcode.com > Settings > Environments > Create an environment > Cloud Machine:

Name: Test-Twingate
Base image: keep the Cosmos default
Repositories: select your repos
Refresh: toggle on
Click on Create Environment

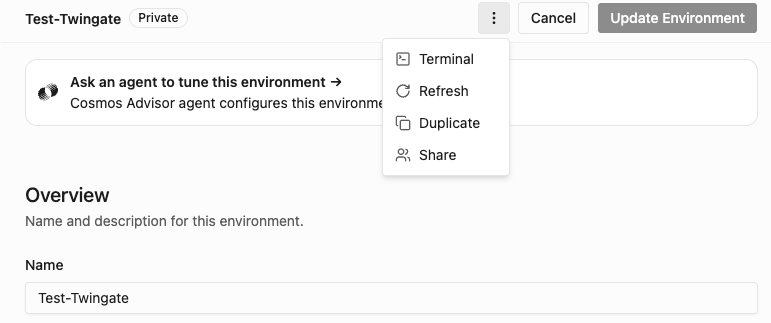

If you reopen your env, top right click on the 3 dots > Terminal:

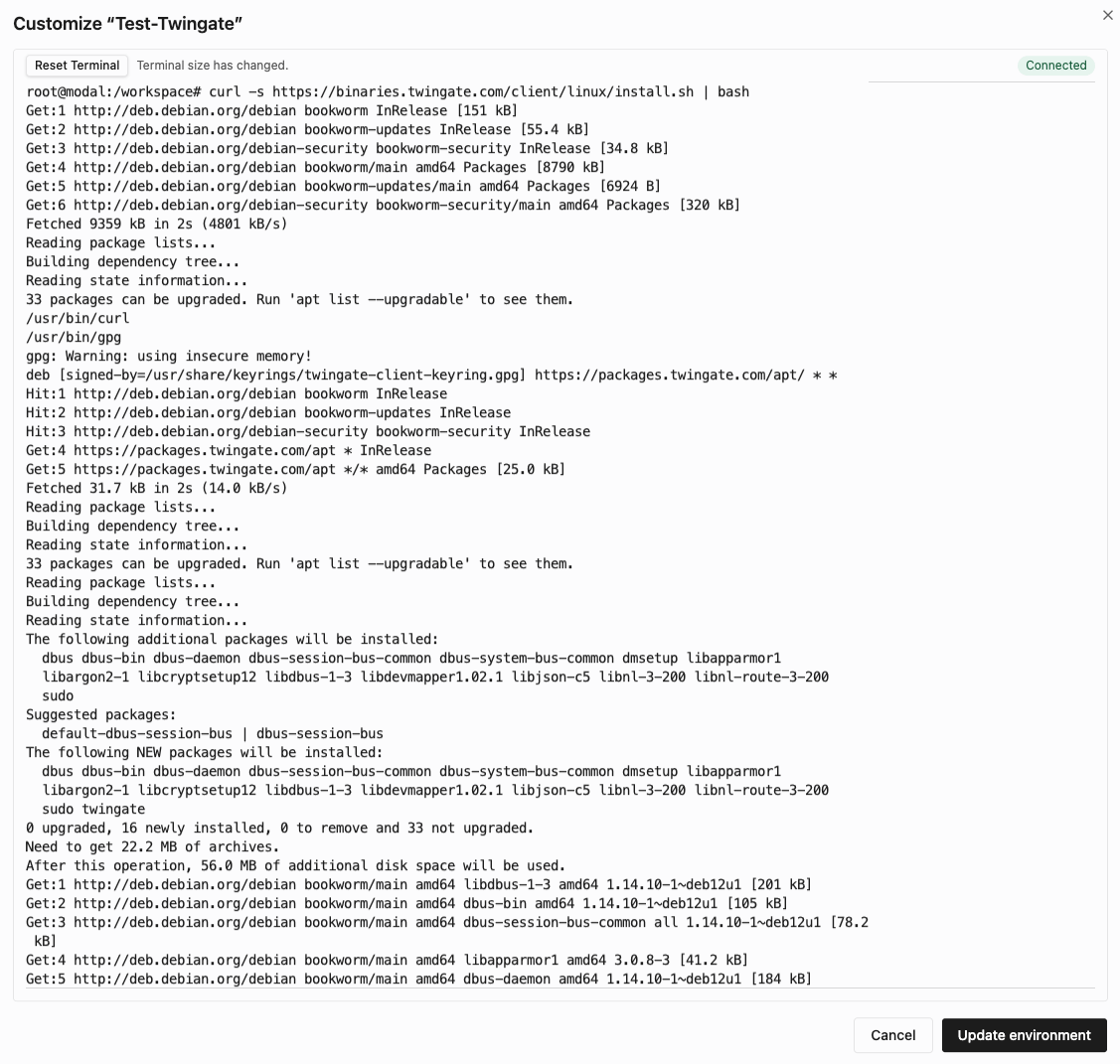

Install Twingate by running:

curl -s https://binaries.twingate.com/client/linux/install.sh | bash

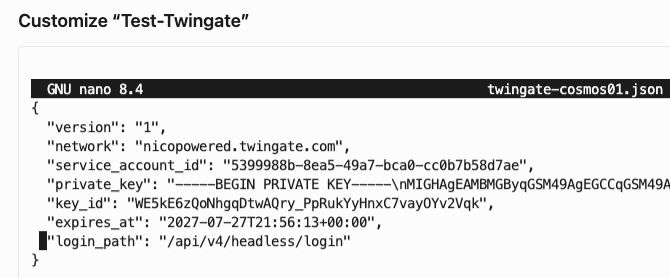

Now we’ll bring over the twingate-cosmos01.json key. Run:

nano twingate-cosmos01.json

Then paste the content of your key, then CTRL-O to save the file, and CTRL-X to exit the file

Make sure twingate-cosmos01.json has been created:

Move up 1 folder:

cd ..

Now authenticate to Twingate by running:

twingate setup --headless /workspace/twingate-cosmos01.json

You should see:

Let’s start Twingate in that terminal session:

/sbin/twingated --http-proxy 127.0.0.1:9999 --tun off &

Then check that this process is running, paste and enter this:

ps aux | grep twingated

You should see this:

Now let’s try to reach the index.html page:

curl --proxy http://127.0.0.1:9999 http://172.31.28.194:8000

And should see your Hello World!:

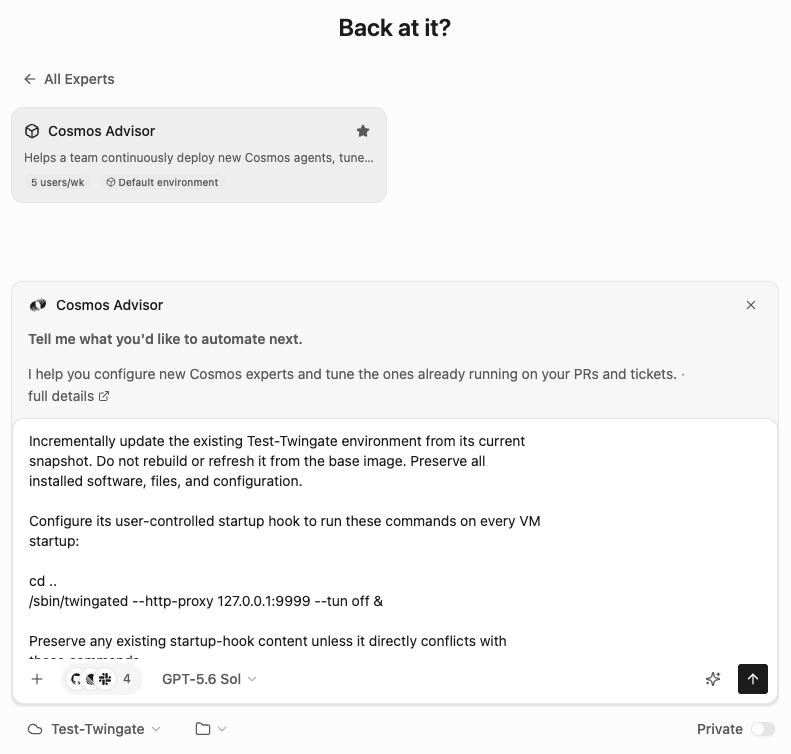

Now click on “Update environment” to save your cloud env config, One more step: earlier Twingate was started only in that terminal session. Now we’ll ask Cosmos Advisor to update the cloud env’s startup script so it always starts Twingate upon booting the cloud env across all future sessions. Open a new Cosmos session (cosmos.augmentcode.com) > New session > select Cosmos Advisor > select the Test-Twingate cloud env, prompt with

Incrementally update the existing Test-Twingate environment from its current
snapshot. Do not rebuild or refresh it from the base image. Preserve all
installed software, files, and configuration.

Configure its user-controlled startup hook to run these commands on every VM
startup:

cd ..
/sbin/twingated --http-proxy 127.0.0.1:9999 --tun off &

Preserve any existing startup-hook content unless it directly conflicts with
these commands.

After updating the snapshot, launch a fresh test session using Test-Twingate
and verify:
1. /sbin/twingated still exists.
2. A twingated process is running.
3. The proxy is listening on 127.0.0.1:9999.

Do not report success based only on the environment update completing. Report
the results of all three runtime checks. If any step would require a rebuild,
stop and ask me first.

When you delegate to a worker or background job, do not use its status field as
evidence of completion. Confirm by reading its actual output or transcript. If a
status check is inconclusive twice, switch tools rather than repeating it, and
tell me what you tried. Never tell me "still waiting" more than once without
having read the underlying output directly.

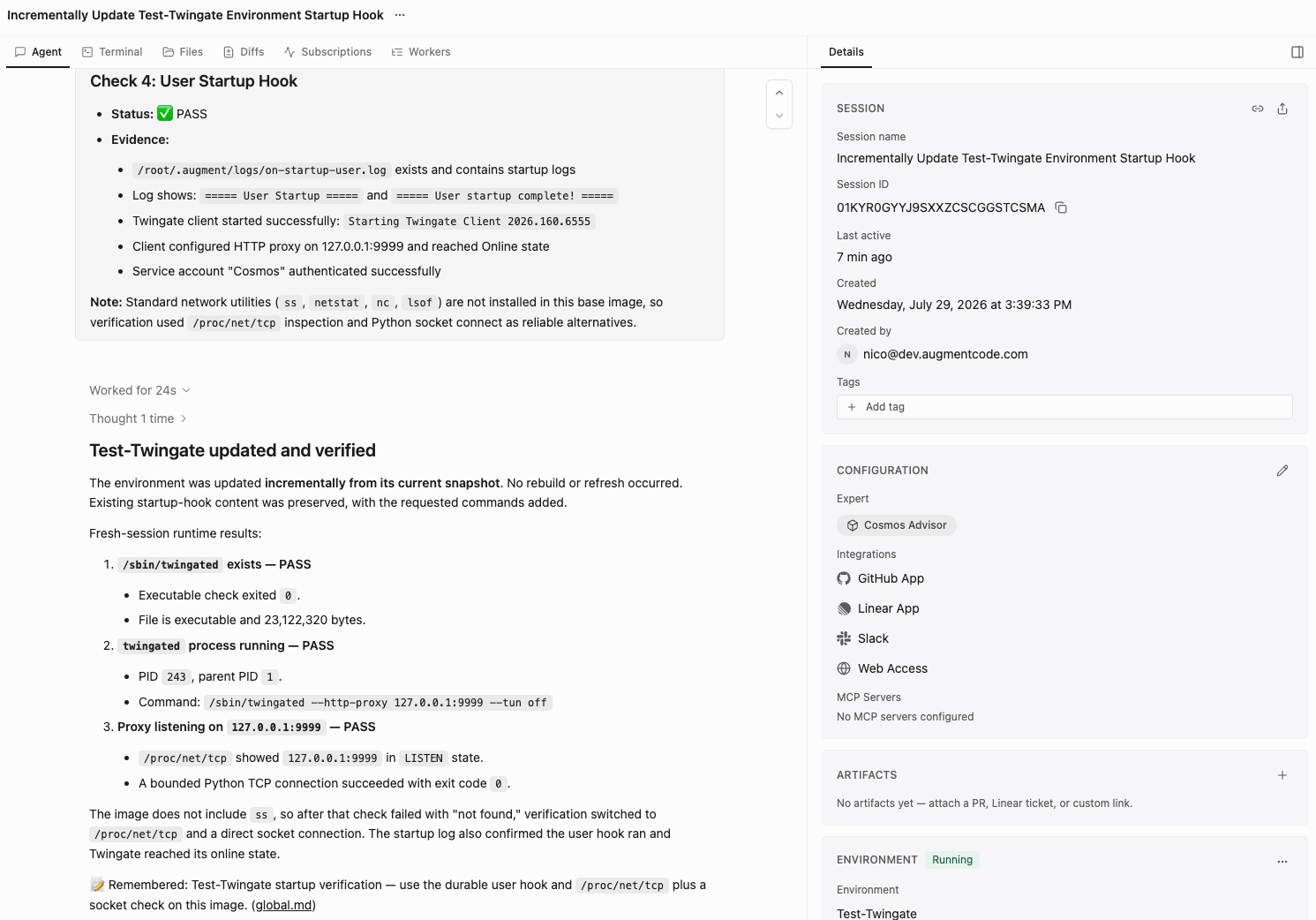

You should see:

Any new session stemmed from that Test-Twingate cloud env will now have a Twingate tunnel running.

Step 5 - Final Test

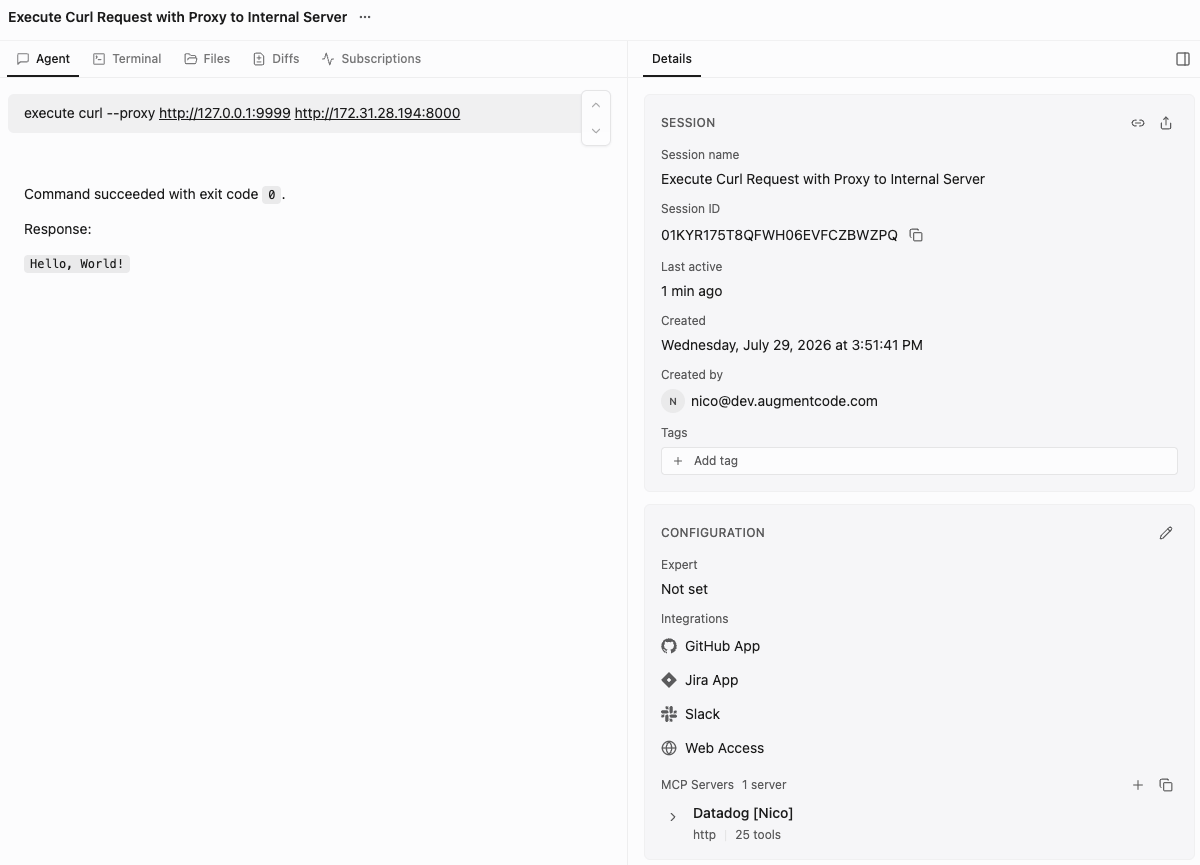

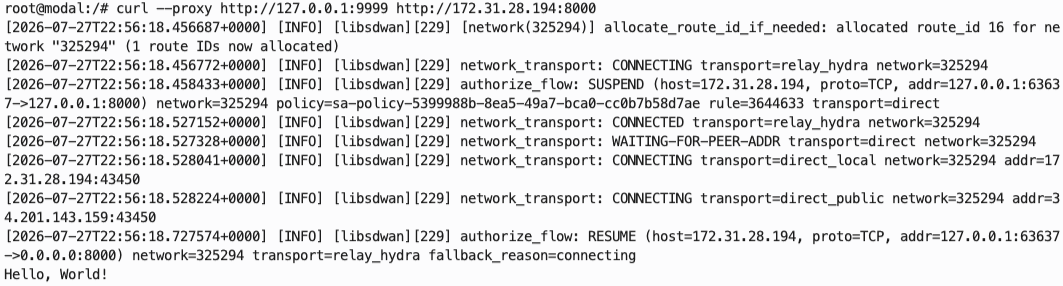

Final check, start a brand new session without any expert and prompt execute curl --proxy http://127.0.0.1:9999 http://172.31.28.194:8000 , you should see this:

Congrats, you’ve configured Twingate with your Cosmos cloud env! You’re now able to leverage Cosmos experts to orchestrate Twingate-protected resources.
